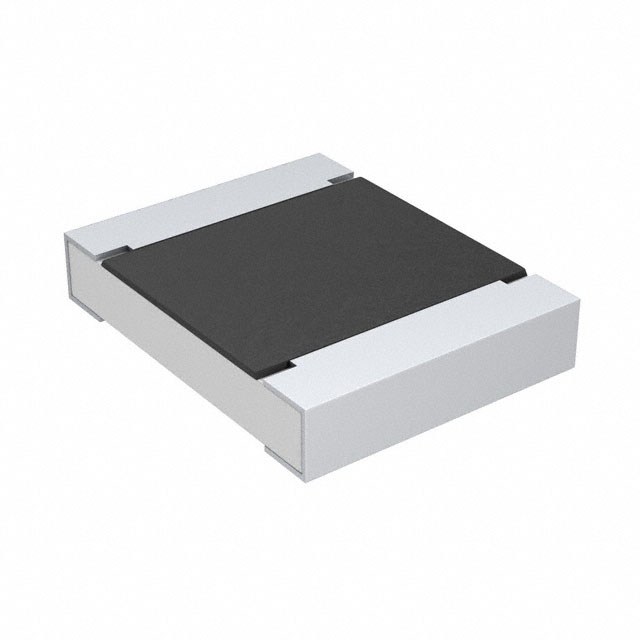

CRCW1210 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

RES SMD 243K OHM 1% 1/2W 1210

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Resistance	Ratings	Features	Package / Case	Package / Case	Composition	Tolerance	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Vishay General Semiconductor - Diodes Division CRCW1210243KFKEA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	243 kOhms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW12105R60JNEA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	5.6 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	5 %	200 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW1210243KFKEAHP	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2			0.75 W	0.75 W	243 kOhms	AEC-Q200	Automotive AEC-Q200 Pulse Withstanding	1210	3225 Metric	Thick Film	1 %	100 ppm/°C	0.7 mm	0.028 in
Vishay General Semiconductor - Diodes Division CRCW1210280RFKTA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	280 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW12104R02FKTA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	4.02 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW12101R78FKEA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	1.78 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW12102K10FKTA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	2.1 kOhms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW121030R0FKTA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	30 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW1210200KFKEA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	200000 Ohms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
Vishay General Semiconductor - Diodes Division CRCW121047K5FKTA	155 °C	-55 °C	3.2 mm	2.5 mm	0.126 in	0.098 in	1210	2	0.6 mm	0.024 in	0.5 W	0.5 W	47.5 kOhms	AEC-Q200	Automotive AEC-Q200	1210	3225 Metric	Thick Film	1 %	100 ppm/°C
