9842NH Series
Manufacturer: Belden Inc.
Beta
⌘K

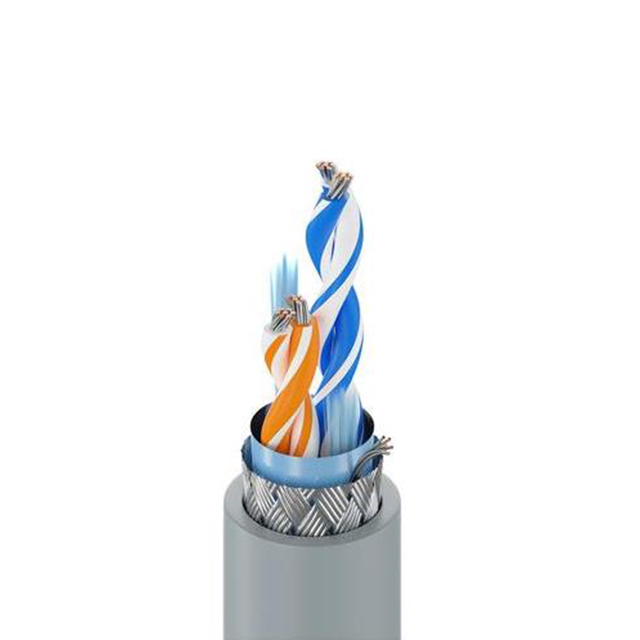

MULTI-PAIR 4COND 24AWG 1000'
| Part | Shield Material | Shield Coverage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Insulation | Jacket Color | Length | Length | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Voltage | Shield Type | Cable Type | Features | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | Computer | 0.323 in | 8.2 mm | 80 °C | -20 ░C | 4 | 0.035 in | 0.889 mm | Low Smoke Zero Halogen (LSZH) | Polyethylene (PE) | Chrome | 304.8 m | 1000 ft | Copper Tinned | 7 | 32 AWG | UL Style 2919 | 300 VDC | Braid Foil | Multi-Pair | Drain Wire | 24 AWG |
