M5251 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

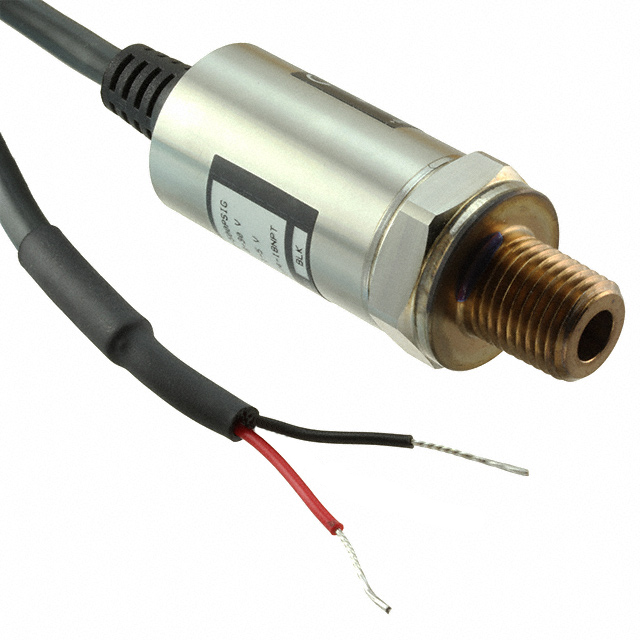

TRANSDUCER 4-20MA 300PSI
| Part | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Applications | Port Size | Port Size | Port Size | Package / Case | Operating Pressure | Operating Pressure | Output Type | Features | Accuracy | Output [Min] | Output [Max] | Port Style | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 4136.85 kPa | 600 PSI | 9 V | 30 VDC | Vented Gauge | 125 °C | -40 C | Cable | Industrial Automation | Male NPT | 0.25 " | 0.25 in | Cylinder | 300 PSI | 2068.43 kPa | Analog Current | Temperature Compensated | 0.25 % | 4 mA | 20 mA | Threaded | ||
TE Connectivity AMP Connectors | 68947.57 kPa | 10000 PSI | 9 V | 30 VDC | Vented Gauge | 125 °C | -40 C | Cable | Industrial Automation | Male NPT | 0.25 " | 0.25 in | Cylinder | 5000 PSI | 34473.79 kPa | Analog Current | Temperature Compensated | 0.25 % | 4 mA | 20 mA | Threaded | ||
TE Connectivity AMP Connectors | 2000 PSI | 9 V | 30 VDC | Vented Gauge | 125 °C | -40 C | Cable | Industrial Automation | Male NPT | 0.25 " | 0.25 in | Cylinder | 1000 PSI | 6894.76 kPa | Analog Current | Temperature Compensated | 0.25 % | 4 mA | 20 mA | Threaded | 13789.51 kPa | ||
TE Connectivity AMP Connectors | 9 V | 30 VDC | Vented Gauge | 125 °C | -40 C | Cable | Industrial Automation | Male NPT | 0.25 " | 0.25 in | Cylinder | 50 PSI | 344.74 kPa | Analog Current | Temperature Compensated | 0.25 % | 4 mA | 20 mA | Threaded | 689.48 kPa | 100 PSI |
