320563 Series

Catalog

CONN RING CIRC 14-16AWG #1/4

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Terminal Type	Features	Contact Material	Termination	Insulation	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Color	Thickness	Thickness	Mounting Type	Contact Finish	Wire Gauge	Length - Overall [x]	Length - Overall [x]

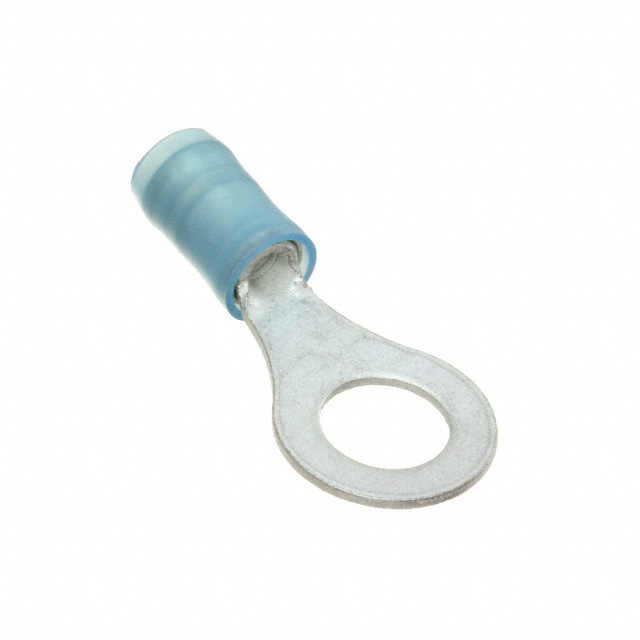

TE Connectivity Raychem Cable Protection 8-320563-1	0.105 in	3.81 mm	2.67 mm	0.15 "	Circular	Serrated Termination	Copper	Crimp	Insulated	Nylon Polyamide (PA)	11.91 mm	0.469 in	0.25 Stud	Blue	0.031 in	0.79 mm	Free Hanging (In-Line)	Tin
TE Connectivity Raychem Cable Protection 2-320563-3	0.063 "	3.3 mm	1.6 mm	0.13 "	Circular	Insulation Restriction	Copper	Crimp	Insulated	Nylon Polyamide (PA)	11.91 mm	0.469 in	0.25 Stud	Blue Blue Stripe	0.031 in	0.79 mm	Free Hanging (In-Line)	Tin	16 AWG	1.14 in	28.96 mm
