77047 Series

Catalog

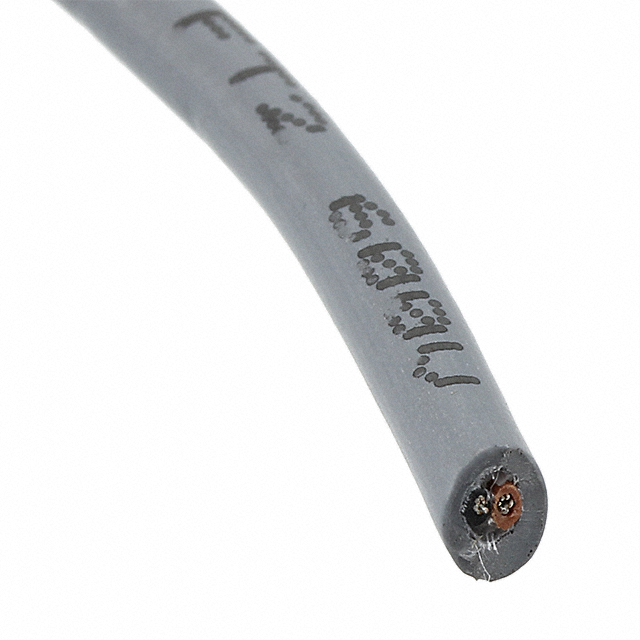

CABLE 2COND 26AWG SLATE

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Number of Conductors	Wire Gauge	Conductor Insulation	Jacket Color	Conductor Material	Conductor Strand [x]	Conductor Strand [x]	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 77047 SL005	0.813 mm	0.032 in	Multi-Conductor	600 V	-50 °C	105 ░C	ISO 10993 UL Style 21915	3.71 mm	0.146 in	Biological Compatibility Rip Cord	2	26 AWG	Polyphenylene Ether Modified (mPPE)	Slate	Copper Tinned	34 AWG	7	Polyphenylene Ether Modified (mPPE)	100 ft	30.5 m
ALPHA WIRE 77047 SL199	0.813 mm	0.032 in	Multi-Conductor	600 V	-50 °C	105 ░C	ISO 10993 UL Style 21915	3.71 mm	0.146 in	Biological Compatibility Rip Cord	2	26 AWG	Polyphenylene Ether Modified (mPPE)	Slate	Copper Tinned	34 AWG	7	Polyphenylene Ether Modified (mPPE)
