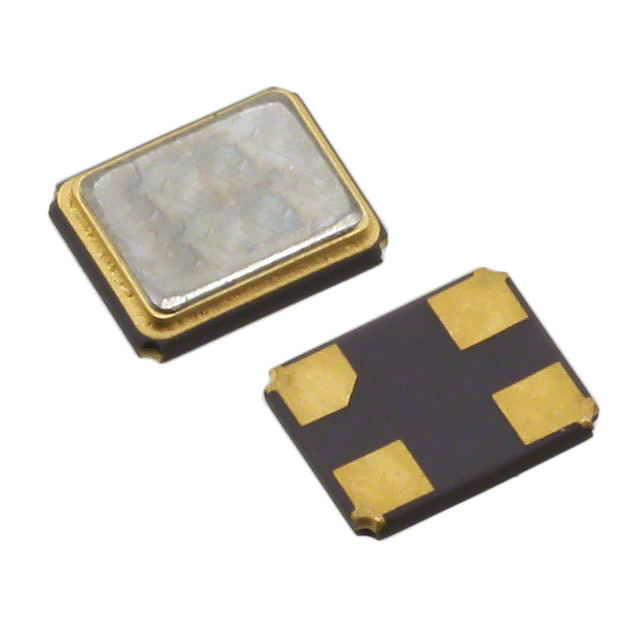

ABM8 Series

Catalog

CRYSTALS XTAL 3225 4-SMD 27MHZ TOL +/-30PPM STAB +/-50PPM -40C - 85C 18PF 50 OHMS

Part	Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Load Capacitance	Frequency Stability	Frequency	Package / Case	Mounting Type	Frequency Tolerance
Abracon LLC ABM8-27.000MHZ-D4-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	85 °C	-40 C	Fundamental	50 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	18 pF	50 ppm	27 MHz	4-SMD No Lead	Surface Mount	30 ppm
Abracon LLC ABM8-50.000MHZ-B1U-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	70 °C	-20 ░C	Fundamental	35 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	18 pF	10 ppm	50 MHz	4-SMD No Lead	Surface Mount	10 ppm
Abracon LLC ABM8-114.285MHZ-D2X-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	85 °C	-40 C	3rd Overtone	80 Ohm	2.5 mm	0.098 in	3.2 mm	0.126 "	18 pF	20 ppm	114.285 MHz	4-SMD No Lead	Surface Mount	20 ppm
Abracon LLC ABM8-27.000MHZ-20-B1U-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	70 °C	-20 ░C	Fundamental	50 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	20 pF	10 ppm	27 MHz	4-SMD No Lead	Surface Mount	10 ppm
Abracon LLC ABM8-22.5792MHZ-R60-N2Y-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	85 °C	-30 ░C	Fundamental	60 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	18 pF	30 ppm	22.5792 MHz	4-SMD No Lead	Surface Mount	20 ppm
Abracon LLC ABM8-50.000MHZ-D4Y-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	85 °C	-40 C	Fundamental	35 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	18 pF	30 ppm	50 MHz	4-SMD No Lead	Surface Mount	30 ppm
Abracon LLC ABM8-40.000MHZ-10-B1X-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	70 °C	-20 ░C	Fundamental	35 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	10 pF	20 ppm	40 MHz	4-SMD No Lead	Surface Mount	10 ppm
Abracon LLC ABM8-16.000MHZ-10-D7G-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	85 °C	-40 C	Fundamental	70 Ohm	2.5 mm	0.098 in	3.2 mm	0.126 "	10 pF	15 ppm	16 MHz	4-SMD No Lead	Surface Mount	15 ppm
Abracon LLC ABM8-26.000MHz-10-B-1-U-T	MHz Crystal	3.2	2.5	4-SMD	0.031 in	0.8 mm	70 °C	-20 ░C	Fundamental	50 Ohms	2.5 mm	0.098 in	3.2 mm	0.126 "	10 pF	10 ppm	26 MHz	4-SMD No Lead	Surface Mount	10 ppm
