NC3030 Series

Catalog

SWITCH HARDWARE PUSHBUTTON BOOT, 1/2-32 UNS-2B THREAD, SILICONE, GRAY

Part	Ingress Protection	For Use With/Related Products	Color	Thread Size	Size / Dimension [z]	Size / Dimension [z]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Mounting Feature	Type	Size / Dimension	Size / Dimension	Features

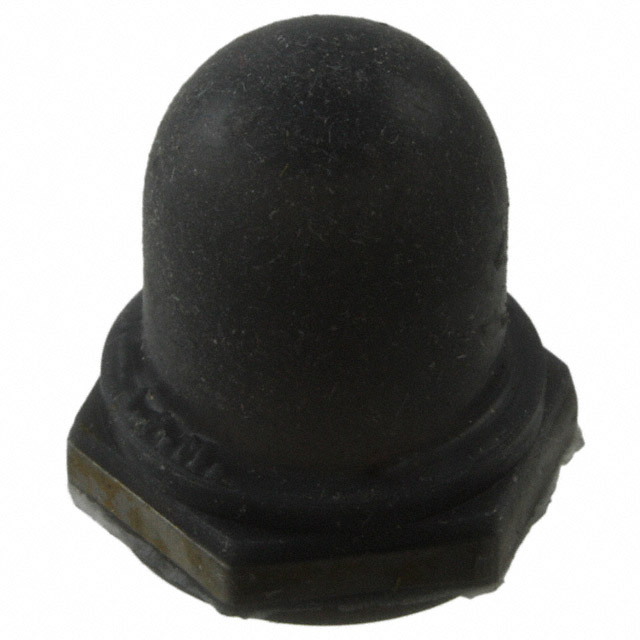

APM Hexseal NC3030H 2	IP66 IP68	Multiple Series	Gray	1/2-32 NS-2B	18.65 mm	0.734 "	Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot

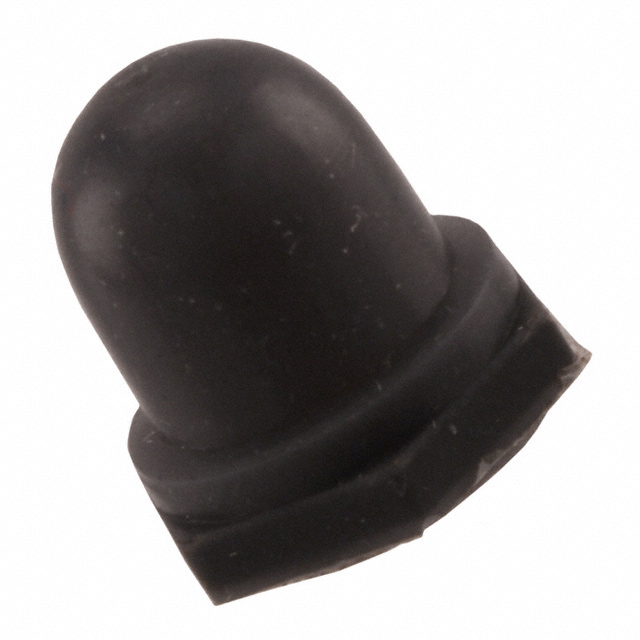

APM Hexseal NC3030H M12-1 2	IP66 IP68	Multiple Series	Gray	M12x1			Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot	18.64 mm	0.733 in

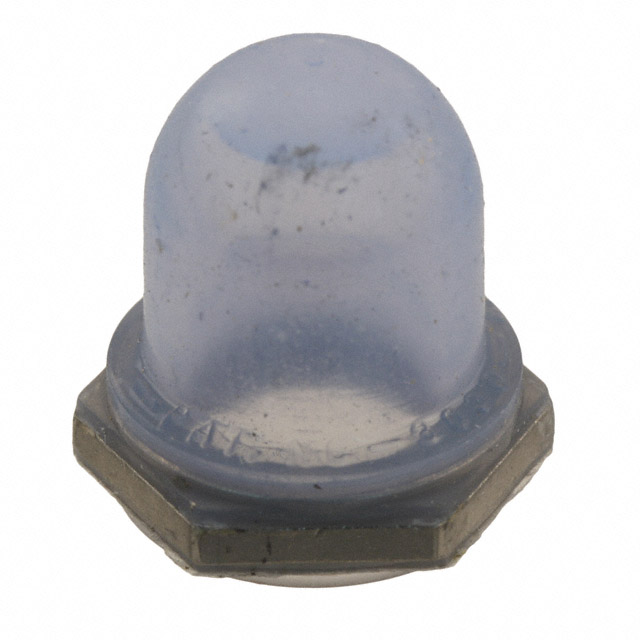

APM Hexseal NC3030 7/16-284	IP66 IP68	Multiple Series	Clear	7/16-28 UNEF-2B	18.26 mm	0.719 in	Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot

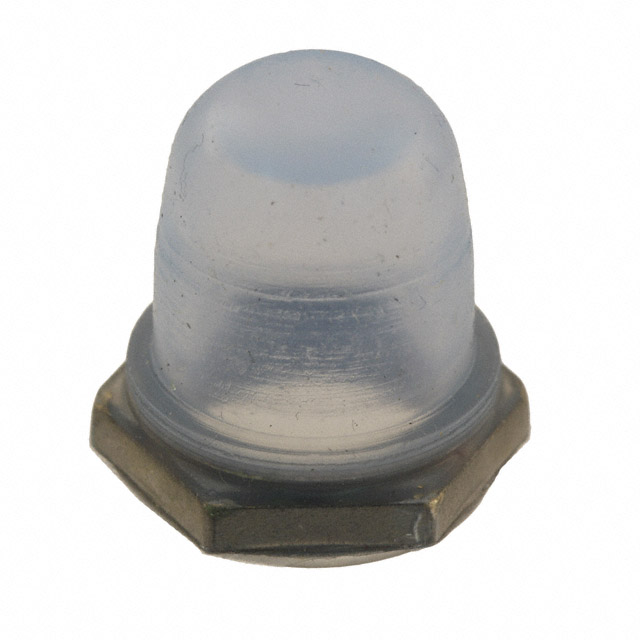

APM Hexseal NC3030 4	IP66 IP68	Multiple Series	Clear	15/32-32 NS-2B	18.26 mm	0.719 in	Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot
APM Hexseal NC3030 RFI 2	IP66 IP68	Multiple Series	Gray	15/32-32 NS-2B	18.26 mm	0.719 in	Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot			Shielded

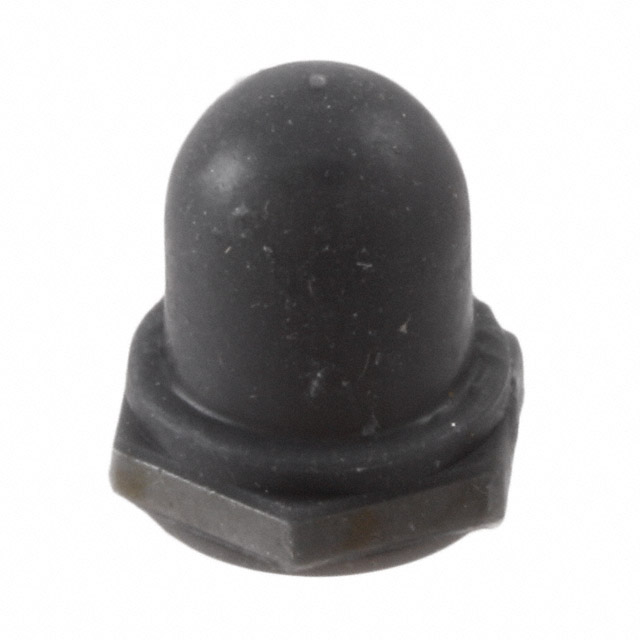

APM Hexseal NC3030 2	IP66 IP68	Multiple Series	Gray	15/32-32 NS-2B	18.26 mm	0.719 in	Silicone Rubber	204 °C	-70 °C	10.72 mm	0.422 in	Front of Panel	Pushbutton Full Boot
