LLQM Series

Catalog

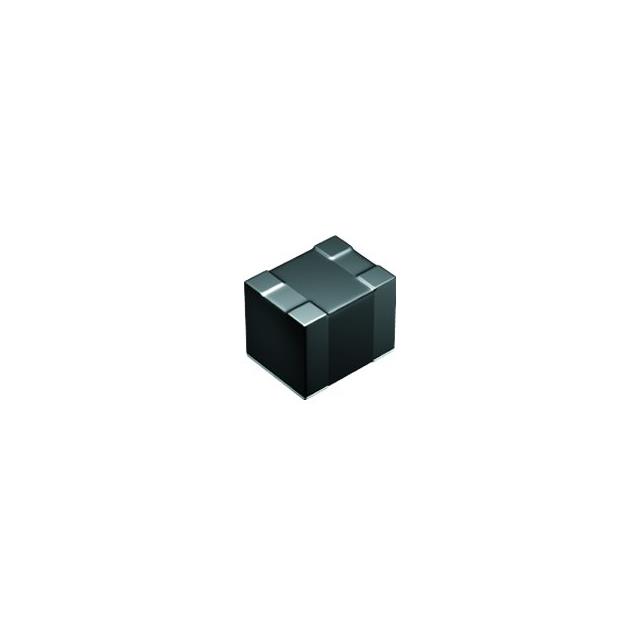

POWER INDUCTORS - SMD INDUCTOR, WOUND FOR SIGNAL LINE, 0806, 0.56UH5%, T&R

Part	Type	Q @ Freq [custom]	Q @ Freq [custom]	Supplier Device Package	Mounting Type	Inductance	Package / Case	Inductance Frequency - Test	Shielding	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Material - Core	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Q @ Freq
Taiyo Yuden LLQMB201616TR56J	Wirewound	30	25.2 MHz	0806	Surface Mount	560 nH	0806 (2016 Metric)	25.2 MHz	Unshielded	290 mOhm	1.6 mm	0.079 in	0.063 "	2 mm	300 MHz	Ferrite	5 %	1.8 mm	0.071 in	-40 C	105 ░C	410 mA
Taiyo Yuden LLQMB201616T680J	Wirewound			0806	Surface Mount	68 µH	0806 (2016 Metric)	2.52 MHz	Unshielded	7 Ohm	1.6 mm	0.079 in	0.063 "	2 mm	11 MHz	Ferrite	5 %	1.8 mm	0.071 in	-40 C	105 ░C	0.09 A	2.52 MHz 20
Taiyo Yuden LLQMB201616T6R8J	Wirewound			0806	Surface Mount	6.8 µH	0806 (2016 Metric)	7.96 MHz	Unshielded	970 mOhm	1.6 mm	0.079 in	0.063 "	2 mm	33 MHz	Ferrite	5 %	1.8 mm	0.071 in	-40 C	105 ░C	0.24 A	7.96 MHz 25
Taiyo Yuden LLQMB201616TR15J	Wirewound	30	25.2 MHz	0806	Surface Mount	150 nH	0806 (2016 Metric)	25.2 MHz	Unshielded	150 mOhm	1.6 mm	0.079 in	0.063 "	2 mm	550 MHz	Ferrite	5 %	1.8 mm	0.071 in	-40 C	105 ░C	570 mA
Taiyo Yuden LLQMB201616T820J	Wirewound			0806	Surface Mount	82 µH	0806 (2016 Metric)	2.52 MHz	Unshielded	7.7 Ohm	1.6 mm	0.079 in	0.063 "	2 mm	10 MHz	Ferrite	5 %	1.8 mm	0.071 in	-40 C	105 ░C	85 mA	2.52 MHz 20
