TLS820 Series
Manufacturer: INFINEON
Beta
⌘K
THE TLS820D2EL VSE IS A 200MA LOW DROPOUT VOLTAGE REGULATOR (LDO) WITH RESET AND LOW IQ IN SSOP-14 PACKAGE. IT HAS A SELECTABLE OUTPUT 5V AND 3.3V PERFECT FOR MCU AND CAN SUPPLY.
| Part | Mounting Type | Voltage Dropout (Max) | Grade | Voltage - Output (Min/Fixed) | Current - Output | Current - Supply (Max) [Max] | Number of Regulators | Protection Features | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | PSRR | Output Configuration | Qualification | Supplier Device Package | Package / Case [y] | Package / Case [x] | Package / Case | Current - Quiescent (Iq) | Supplied Contents | Board Type | Regulator Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Utilized IC / Part | Channels per IC | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Surface Mount | 0.4 V 0.48 V | Automotive | 3.3 V 5 V | 0.2 A | 42 µA | 1 | Over Current Over Temperature | Enable Reset | -40 °C | 150 °C | 60 dB 63 db | Positive | AEC-Q100 | PG-SSOP-14-5 | 3.9 mm | 0.154 in | 14-LSSOP Exposed Pad | 30 µA | |||||||||
 INFINEON | Surface Mount | 0.34 V | Automotive | 5 V | 0.2 A | 80 µA | 1 | Over Current Over Temperature Short Circuit | Delay Enable Reset Watchdog | -40 °C | 150 °C | 59 dB | Positive | AEC-Q100 | PG-SSOP-14-5 | 3.9 mm | 0.154 in | 14-LSSOP Exposed Pad | 5 µA | |||||||||

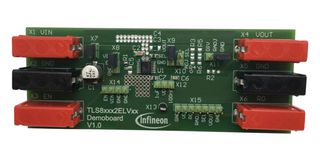

 INFINEON | 0.2 A | Board(s) | Fully Populated | Positive Fixed | 3 V | 40 V | 5 V | TLS820B2 | 1 | Board(s) |
