BD9C601 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
DC-DC SWITCHING BUCK STEP DOWN REGULATOR, ADJUSTABLE, 4.5V-18VIN, 337.5MV-12.6VOUT, 6AOUT, HTSOP-8 ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Function | Current - Output | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Max) [Max] | Topology | Output Configuration | Frequency - Switching | Synchronous Rectifier | Output Type | Supplier Device Package | Voltage - Input (Min) [Min] | Package / Case | Package / Case [y] | Package / Case [x] | Voltage - Output (Min/Fixed) | Number of Outputs | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Regulator Topology | Contents | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 85 C | -40 ¯C | Step-Down | 6 A | 18 V | Surface Mount | 12.6 V | Buck | Positive | 500 kHz | Adjustable | 8-HTSOP-J | 4.5 V | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 0.8 V | 1 | ||||||||||||

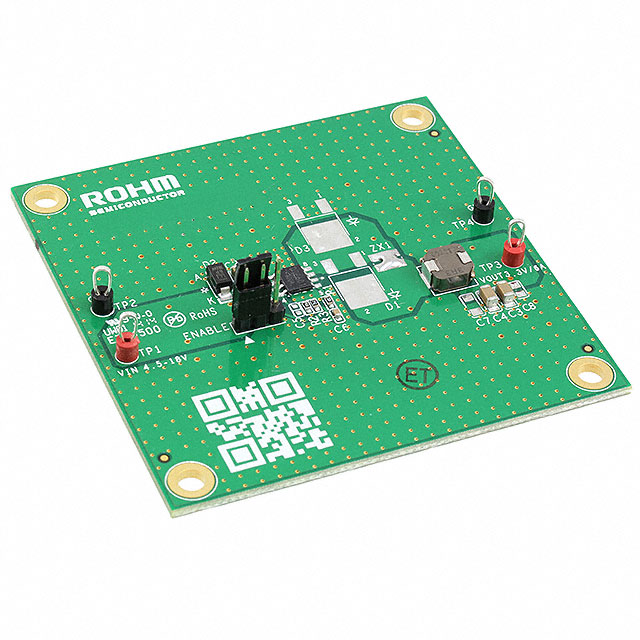

 Rohm Semiconductor | 6 A | 500 kHz | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | Buck | Board(s) | BD9C601 | 18 V | 4.5 V | DC/DC Step Down | 3.3 V |
