23SW-00120500 Series
Manufacturer: Ideal Power Ltd.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

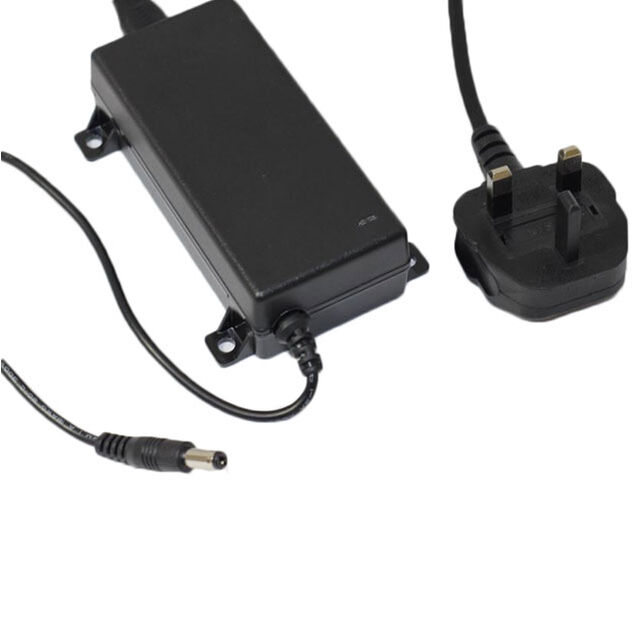

AC/DC DESKTOP ADAPTER 12V 60W
| Part | Applications | Standard Number | Voltage - Output | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Form | Input Connector | Region Utilized | Efficiency | Input Type | Output Connector O.D. | Output Connector | Output Connector Length | Output Connector I.D. | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Power (Watts) | Polarization | Current - Output (Max) | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | No Load Power Consumption (Max) | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ideal Power Ltd. | ITE (Commercial) | 60950-1 | 12 V | 90 V | 264 V | Desktop (Class II) | IEC 320-C8 | International | 89 % | Cord (Sold Separately) | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | 2.8 in | 4.19 in | 1.35 in | 60 W | Positive Center | 5 A | CE cUL FCC GS TUV UL | 40 °C | 0 °C | 100 mW | 70.9 in |
