HDF-V62 Series
Manufacturer: NorComp Inc.
Beta
⌘K

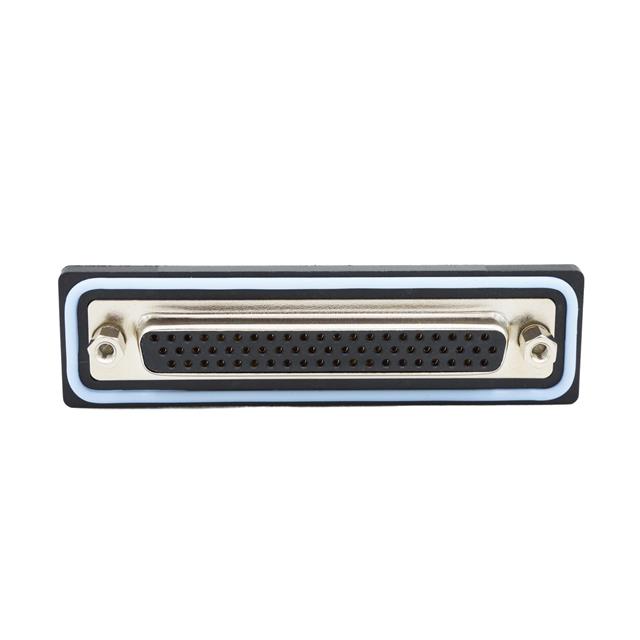

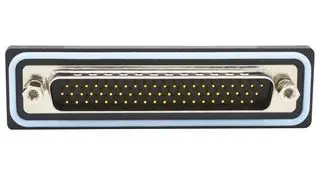

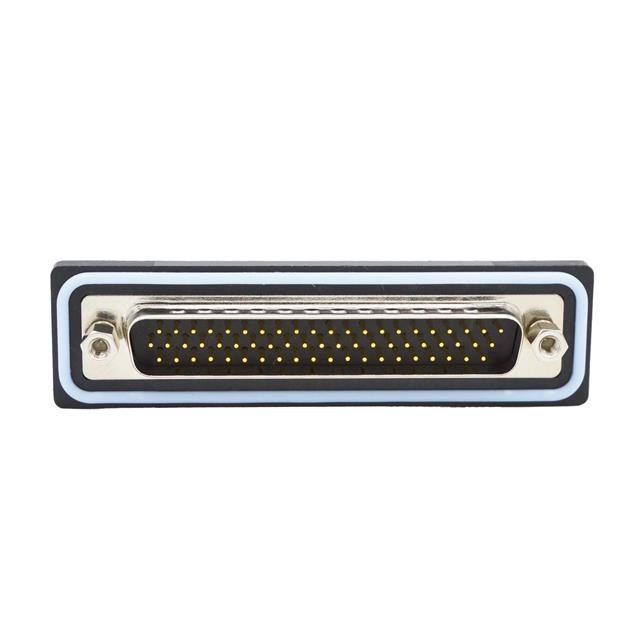

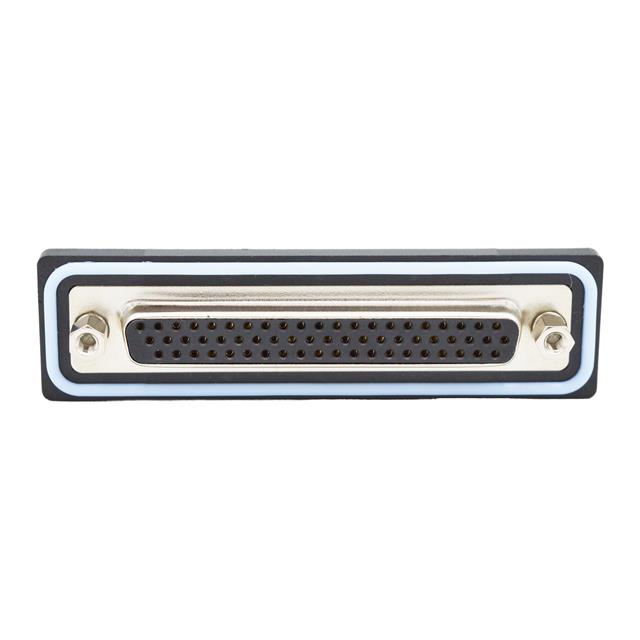

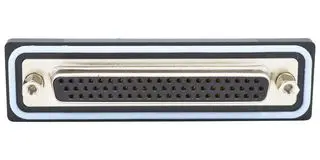

D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 62 CONTACTS, DC, SOLDER
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Type | Shell Material, Finish | Ingress Protection | Flange Feature | Connector Type | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Connector Style | Mounting Type | Number of Rows [custom] | Number of Positions | Termination | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | ||
 NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Plug Male Pins | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Board Lock Grounding Indents | |
 NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Board Lock | |
 NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | 30 Áin | 0.76 Ám | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Plug Male Pins | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Grounding Indents | |
NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Flash | |||
NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Plug Male Pins | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Grounding Indents | Flash | ||
 NorComp Inc. | Black | Brass | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 4-40 Mating Side Female Screwlock | Plug Male Pins | 3 A | C DC | 4 | Gold | D-Sub High Density | Panel Mount Through Hole | 3 | 62 | Solder | Board Lock Grounding Indents | Flash |
