RZB108 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 216POS 0.050
| Part | Material - Insulation | Pitch | Pitch | Mounting Type | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness | Card Thickness | Number of Rows [custom] | Number of Positions/Bay/Row | Features | Read Out | Gender | Color | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

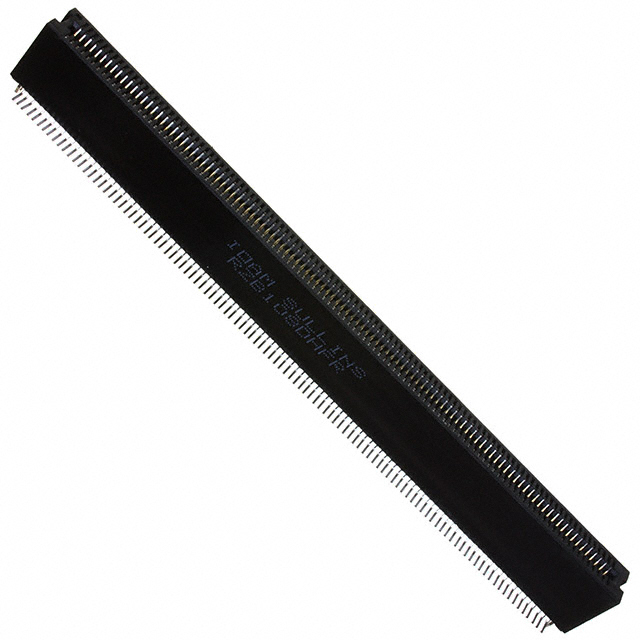

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.05 in | 1.27 mm | Surface Mount | Hairpin Bellows | Gold | 0.25 Ám | 10 Áin | Solder | -65 ░C | 125 °C | Non Specified - Dual Edge | 1.57 mm | 0.062 in | 2 | 108 | Board Lock | Dual | Female | Black | 216 | Phosphor Bronze |

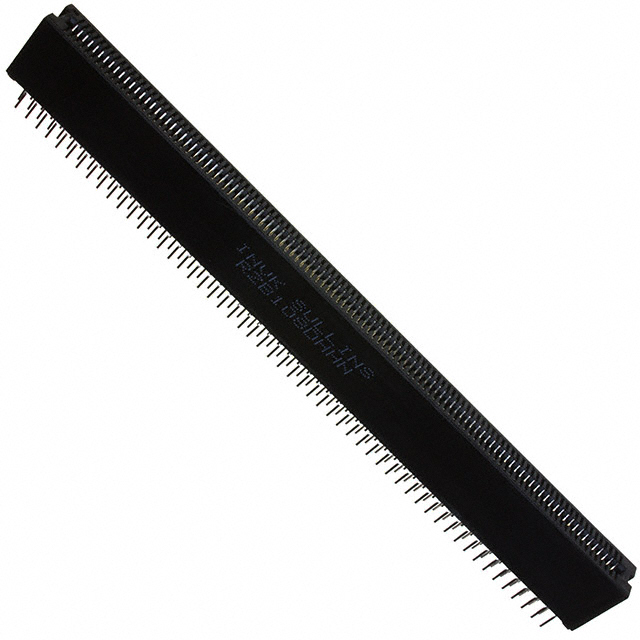

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 0.05 in | 1.27 mm | Through Hole | Hairpin Bellows | Gold | 0.25 Ám | 10 Áin | Solder Staggered | -65 ░C | 125 °C | Non Specified - Dual Edge | 1.57 mm | 0.062 in | 2 | 108 | Dual | Female | Black | 216 | Phosphor Bronze |
