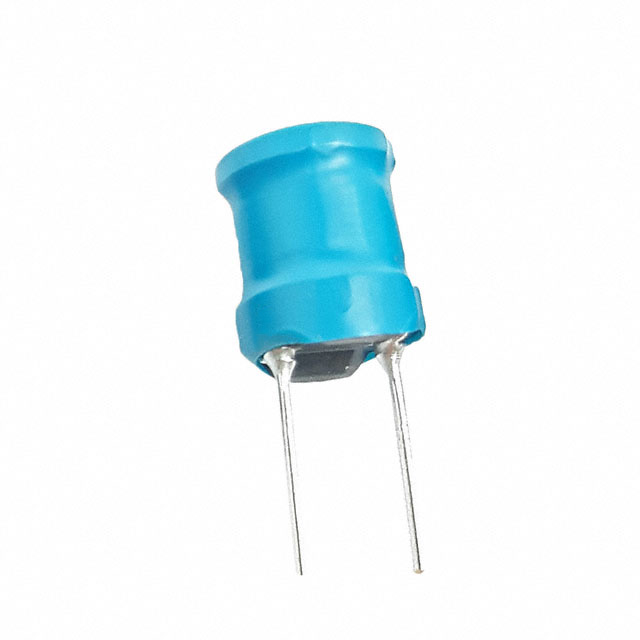

SBC1 Series

Manufacturer: KEMET

Catalog

FIXED IND 22UH 1.3A 130 MOHM TH

Part	Current Rating (Amps)	Package / Case	Inductance Frequency - Test	Current - Saturation (Isat)	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	DC Resistance (DCR)	DC Resistance (DCR) [Max]
KEMET SBC1-220-132	1.3 A	Radial Vertical Cylinder	10 kHz	1 A	5.5 mm	0.217 in	20 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	22 µH	Ferrite	-20 ░C	105 ░C	Unshielded	130 mOhm
KEMET SBC1-6R8-182	1.8 A	Radial Vertical Cylinder	10 kHz	1.9 A	5.5 mm	0.217 in	20 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	6.8 µH	Ferrite	-20 ░C	105 ░C	Unshielded
KEMET SBC1-152-181	0.18 A	Radial Vertical Cylinder	10 kHz	120 mA	5.5 mm	0.217 in	10 %	Through Hole	Drum Core Wirewound	0.413 "	10.5 mm	1.5 mH	Ferrite	-20 ░C	105 ░C	Unshielded		8 Ohm
KEMET SBC1-681-251	0.25 A	Radial Vertical Cylinder	10 kHz	180 mA	5.5 mm	0.217 in	10 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	680 µH	Ferrite	-20 ░C	105 ░C	Unshielded		3.4 Ohm
KEMET SBC1-2R2-272	2.7 A	Radial Vertical Cylinder	10 kHz	3.2 A	5.5 mm	0.217 in	20 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	2.2 µH	Ferrite	-20 ░C	105 ░C	Unshielded	40 mOhm
KEMET SBC1-1R0-312	3.1 A	Radial Vertical Cylinder	10 kHz	5.2 A	5.5 mm	0.217 in	20 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	1 µH	Ferrite	-20 ░C	105 ░C	Unshielded		30 mOhm
KEMET SBC1-151-431	570 mA	Radial Vertical Cylinder	10 kHz	470 mA	5.5 mm	0.217 in	10 %	Through Hole	Drum Core Wirewound	0.413 "	10.5 mm	150 µH	Ferrite	-20 ░C	105 ░C	Unshielded		650 mOhm
KEMET SBC1-1R5-292	2.9 A	Radial Vertical Cylinder	10 kHz	4 A	5.5 mm	0.217 in	20 %	Through Hole	Drum Core Wirewound	0.335 "	8.5 mm	1.5 µH	Ferrite	-20 ░C	105 ░C	Unshielded		30 mOhm
