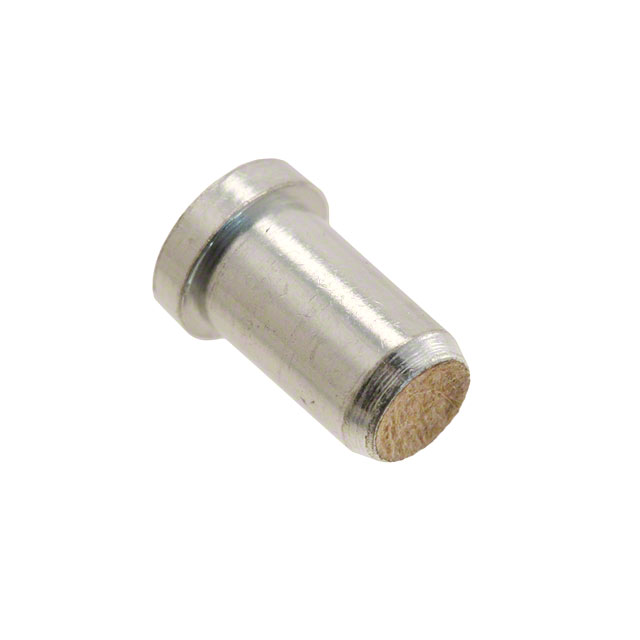

0353-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT .040-.060 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Termination | Socket Depth [custom] | Socket Depth [custom] | Tail Type | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Knockout Bottom (Organic Fiber Plug®) | 2.69 mm | 0.106 in | 0.125 in | 3.18 mm | 0.06 in | 1.52 mm | 0.04 in | 1.02 mm | Gold | 30 Áin | 0.76 Ám | 1.98 mm | 0.078 in | Beryllium Copper | Solder | 4.88 mm | 0.192 in | No Tail | 4.88 mm | 0.192 in |
