BMRA Series

Power Inductors - SMD .47uH RDC=14mOhms 7A

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD .47uH RDC=14mOhms 7A

Catalog

Power Inductors - SMD .47uH RDC=14mOhms 7A

Part	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Type	Current Rating (Amps)	Inductance	Inductance Frequency - Test	Current - Saturation (Isat)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max)
Pulse Electronics BMRA000404204R7MA1	126 mOhm	0.079 in	2 mm	Nonstandard	20 %	Molded	2.2 A	4.7 ÁH	100 kHz	3 A	Surface Mount	-55 C	125 °C	4.6 mm	0.161 in	0.181 in	4.1 mm	Shielded
Pulse Electronics BMRA000505304R7MA1				Nonstandard	20 %	Molded	4 A	4.7 ÁH	100 kHz	6 A	Surface Mount	-55 C	125 °C	5.7 mm			5.4 mm	Shielded	0.118 "	3 mm	0.213 in	0.224 "
Pulse Electronics BMRA00060630R68MA1	6.3 mOhm			Nonstandard	20 %	Molded	15 A	0.68 µH	100 kHz	24 A	Surface Mount	-55 C	125 °C				7.3 mm	Shielded	0.118 "	3 mm	0.287 "	0.26 in	6.6 mm
Pulse Electronics BMRA00040420R22MA1		0.079 in	2 mm	Nonstandard	20 %	Molded	9 A	220 nH	100 kHz	12.5 A	Surface Mount	-55 C	125 °C	4.1 mm			4.6 mm	Shielded			0.181 in	0.161 in		6.6 mOhm
Pulse Electronics BMRA00060630R56MA1	5.5 mOhm			Nonstandard	20 %	Molded	16.5 A	560 nH	100 kHz	27 A	Surface Mount	-55 C	125 °C				7.3 mm	Shielded	0.118 "	3 mm	0.287 "	0.26 in	6.6 mm
Pulse Electronics BMRA000404154R7MA1				Nonstandard	20 %	Molded	2 A	4.7 ÁH	100 kHz	4 A	Surface Mount	-55 C	125 °C	4.1 mm			4.6 mm	Shielded			0.181 in	0.161 in		146 mOhm	0.059 "	1.5 mm

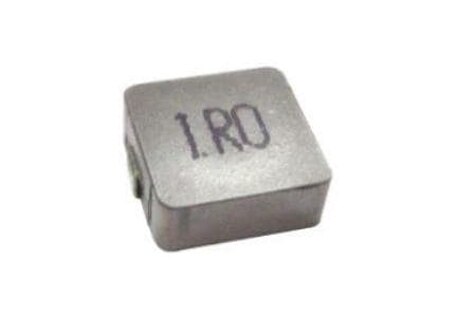

Pulse Electronics BMRA000404208R2MA1	216 mOhm	0.079 in	2 mm	Nonstandard	20 %	Molded	2 A	8.2 µH	100 kHz	2.5 A	Surface Mount	-55 C	125 °C	4.1 mm			4.6 mm	Shielded			0.181 in	0.161 in
Pulse Electronics BMRA00050530R47MA1	8 mOhm			Nonstandard	20 %	Molded	10 A	470 nH	100 kHz	14 A	Surface Mount	-55 C	125 °C	5.4 mm			5.7 mm	Shielded	0.118 "	3 mm	0.224 "	0.213 "
Pulse Electronics BMRA00060630R10MA1	1.5 mOhm			Nonstandard	20 %	Molded	37 A	100 nH	100 kHz	45 A	Surface Mount	-55 C	125 °C				7.3 mm	Shielded	0.118 "	3 mm	0.287 "	0.26 in	6.6 mm
Pulse Electronics BMRA00040420R10MA1	4 mOhm	0.079 in	2 mm	Nonstandard	20 %	Molded	12 Amps	100 nH	100 kHz		Surface Mount	-55 C	125 °C	4.1 mm			4.6 mm	Shielded			0.181 in	0.161 in
