M83513/25 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D RCPT 37P VERT SLDR

Part	Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Feature	Contact Finish	Connector Type	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Type	Number of Positions	Shell Material, Finish	Current Rating (Amps)	Mounting Type	Number of Rows [custom]	Number of Positions [custom]

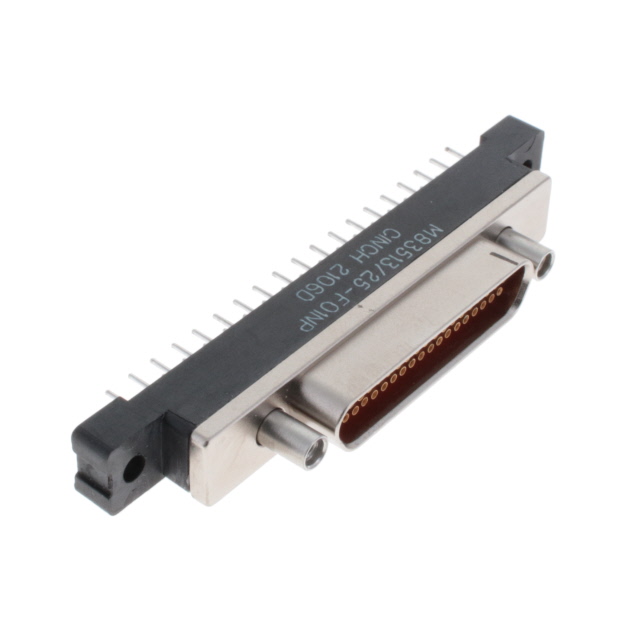

Cinch Connectivity Solutions M83513/25-F01NP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	37	Aluminum Alloy Electroless Nickel Plated	3 A	Through Hole	2
Cinch Connectivity Solutions M83513/25-B01NP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	15	Aluminum Alloy Electroless Nickel Plated	3 A	Through Hole	2

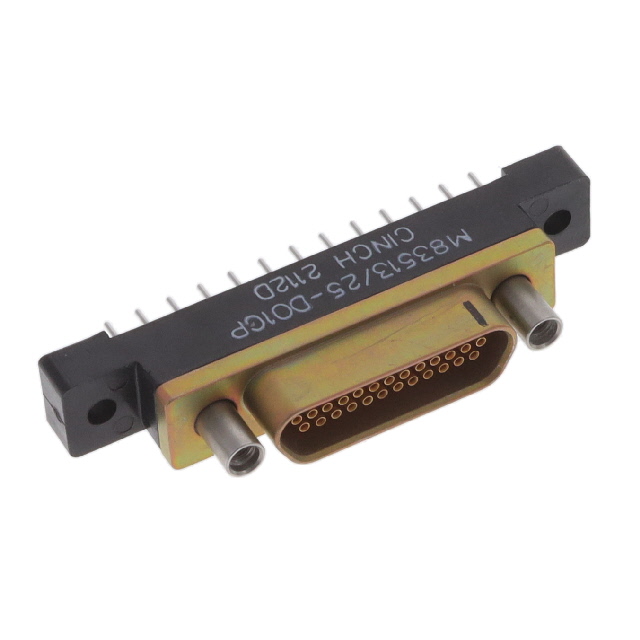

Cinch Connectivity Solutions M83513/25-D01CP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	25	Aluminum Alloy Yellow Chromate Plated Cadmium	3 A	Through Hole	2
Cinch Connectivity Solutions M83513/25-E01CP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal		Aluminum Alloy Yellow Chromate Plated Cadmium	3 A	Through Hole	2	31
Cinch Connectivity Solutions M83513/25-B01CP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	15	Aluminum Alloy Yellow Chromate Plated Cadmium	3 A	Through Hole	2

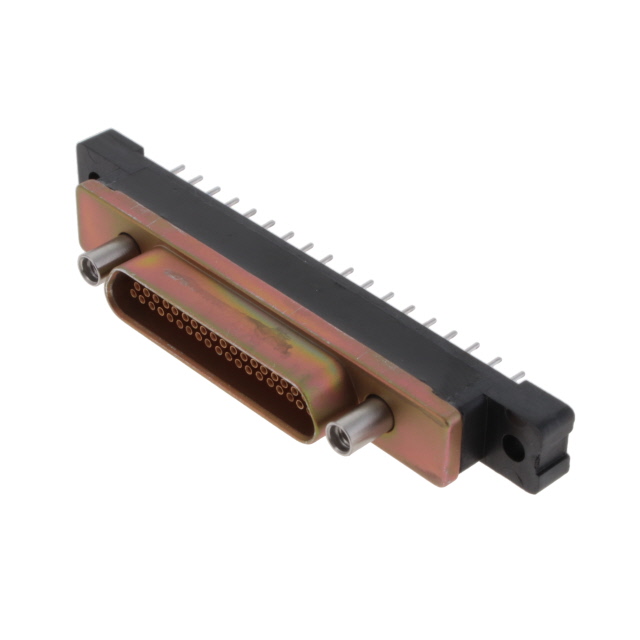

Cinch Connectivity Solutions M83513/25-F01CP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	37	Aluminum Alloy Yellow Chromate Plated Cadmium	3 A	Through Hole	2

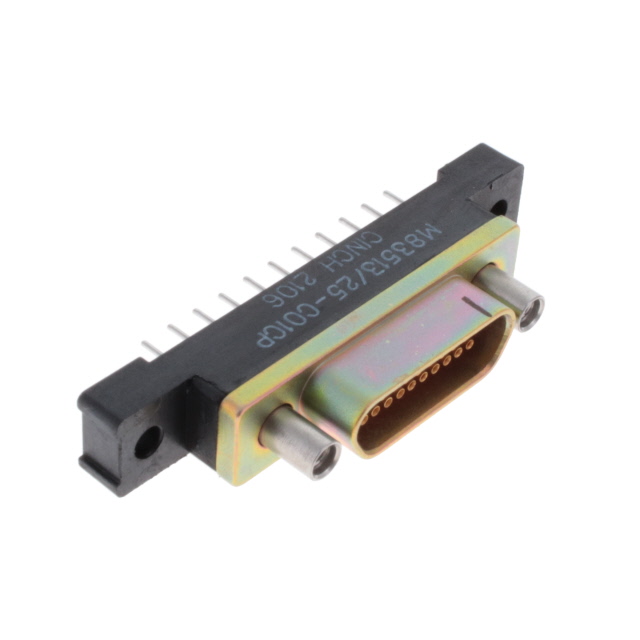

Cinch Connectivity Solutions M83513/25-C01CP	Copper Alloy	Polyester Glass Filled	-55 C	125 °C	Solder	Mating Side Female Screwlock (2-56)	Gold	Receptacle Female Sockets	UL94 V-0	0.05	0.05	50 µin	1.27 µm	D-Type Micro-D	Signal	21	Aluminum Alloy Yellow Chromate Plated Cadmium	3 A	Through Hole	2
