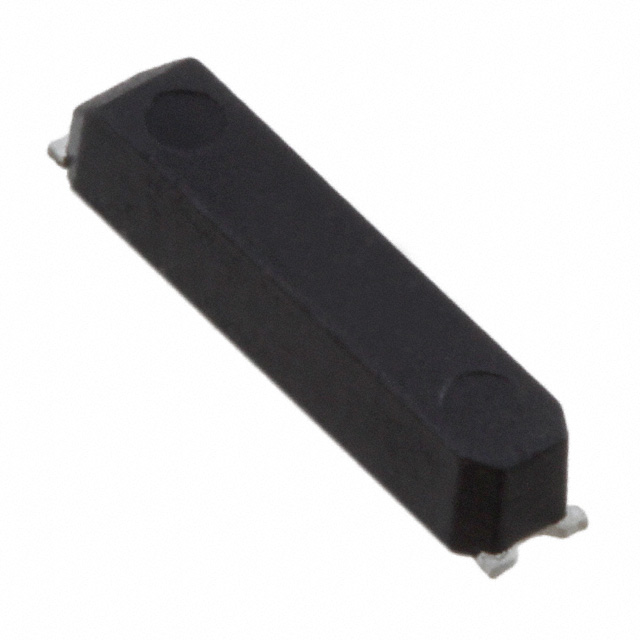

9HT7 Series

Catalog

CRYSTAL, 32.768KHZ, 12.5PF, 6.9MMX1.4MM

Part	Operating Mode	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Mounting Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Load Capacitance
TXC CORPORATION 9HT7-32.768KDZF-T	Fundamental	0.055 in	0.264 in	1.4 mm	6.7 mm	4-SMD Flat Leads	Surface Mount	0.032768 MHz	85 °C	-40 C	20 ppm	kHz Crystal (Tuning Fork)	0.055 in	1.4 mm	65 kOhms	12.5 pF
TXC CORPORATION 9HT7-32.768KDZY-T	Fundamental	0.055 in	0.264 in	1.4 mm	6.7 mm	4-SMD Flat Leads	Surface Mount	0.032768 MHz	85 °C	-40 C	20 ppm	kHz Crystal (Tuning Fork)	0.055 in	1.4 mm	65 kOhms	7 pF
