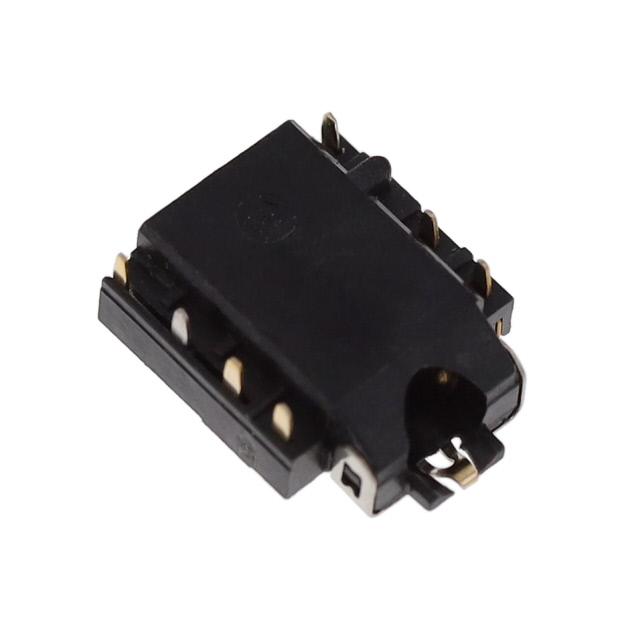

ASJ-198 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Housing Material | Contact Material - Plating | Contact Material | Body Color | Voltage - Rated | Mating Length/Depth | Mating Length/Depth | Current Rating (Amps) | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Internal Switch(s) | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Termination | Signal Lines | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Mounting Type | Features | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Thermoplastic | Gold | Phosphor Bronze | Black | 30 V | 14 mm | 0.551 in | 0.5 A | Female | -20 ░C | 70 °C | 0.125 in | 3.5 mm | 0.141 in | Single Switch | 0.142 in | 3.6 mm | Phone Jack | Solder | Stereo (4 Conductor TRRS) | 5 | 6 | Right Angle Through Hole | Board Guide | Shielded |
