ST333 Series

Catalog

SCR 800V 1435A TO200AB

Part	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Off State (Max) [Max]	Supplier Device Package
Vishay General Semiconductor - Diodes Division VS-ST333C08LFL0	1435 A	800 V	E-PUK TO-200AB	Clamp On	125 °C	-40 °C	200 mA	720 A	1.96 V	Standard Recovery	11000 A 11500 A	50 mA	TO-200AB (E-Puk)

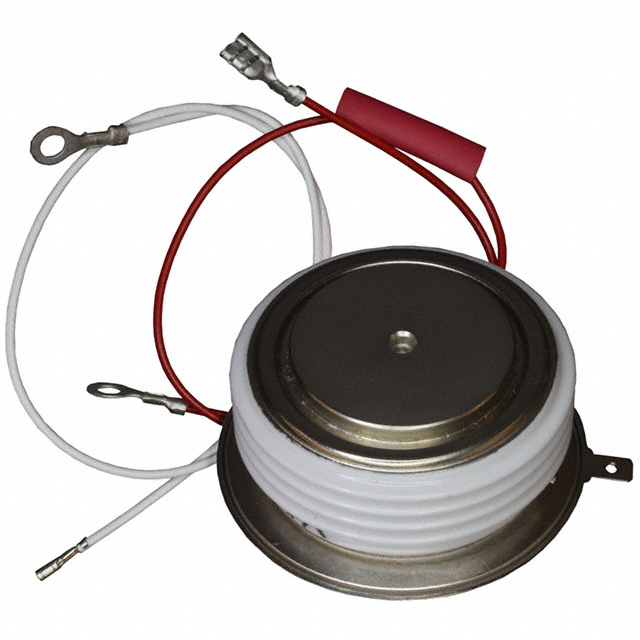

Vishay General Semiconductor - Diodes Division VS-ST333C08LFM0	1435 A	800 V	E-PUK TO-200AB	Clamp On	125 °C	-40 °C	200 mA	720 A	1.96 V	Standard Recovery	11000 A 11500 A	50 mA	TO-200AB (E-Puk)
Vishay General Semiconductor - Diodes Division VS-ST333S04PFM0	518 A	400 V	Stud TO-118-4 TO-209AE	Chassis Stud Mount	125 °C	-40 °C	200 mA	330 A	1.96 V	Standard Recovery	11000 A 11520 A	50 mA
