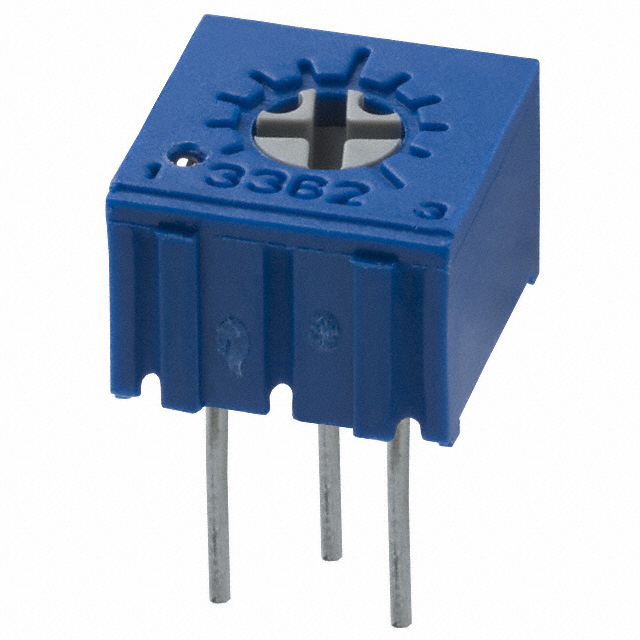

3362 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 1/4"SQ 300KOHMS 10% 0.5WATTS

Part	Termination Style	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Number of Turns	Adjustment Type	Resistive Material	Mounting Type
Bourns Inc. 3362R-1-304LF	PC Pins	100 ppm/°C	0.5 W	0.5 W	300 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
Bourns Inc. 3362Z-1-502	PC Pins	100 ppm/°C	0.5 W	0.5 W	5 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Side Adjustment	Cermet	Through Hole
Bourns Inc. 3362R-1-104	PC Pins	100 ppm/°C	0.5 W	0.5 W	100 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
Bourns Inc. 3362S-1-202LF	PC Pins	100 ppm/°C	0.5 W	0.5 W	2 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Side Adjustment	Cermet	Through Hole
Bourns Inc. 3362M-1-104R	PC Pins	100 ppm/°C	0.5 W	0.5 W	100 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Side Adjustment	Cermet	Through Hole
Bourns Inc. 3362H-1-201LF	PC Pins	100 ppm/°C	0.5 W	0.5 W	200 Ohms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
Bourns Inc. 3362P-1-303	PC Pins	100 ppm/°C	0.5 W	0.5 W	30 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
Bourns Inc. 3362P-1-103	PC Pins	100 ppm/°C	0.5 W	0.5 W	10000 Ohms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
Bourns Inc. 3362X-1-504LF	PC Pins	100 ppm/°C	0.5 W	0.5 W		6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Side Adjustment	Cermet	Through Hole
Bourns Inc. 3362U-1-253LF	PC Pins	100 ppm/°C	0.5 W	0.5 W	25 kOhms	6.99 mm	0.275 in	0.26 in	6.6 mm	10 %	1	Top Adjustment	Cermet	Through Hole
