093001003 Series
Manufacturer: HARTING
Beta
⌘K
10B BULKHEAD HOUSING, DOUBLE LEVER, W/ METAL LEVERS, W/ FKM GASKET
| Part | Connector Type | Lock Location | Size | Style | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Housing Color | Ingress Protection | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

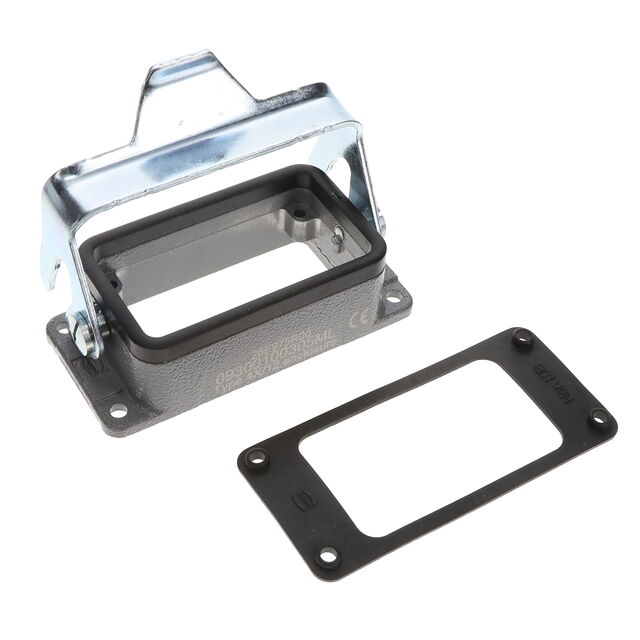

 HARTING | Base - Panel Mount | Locking Clip (2) on Base Bottom | 10B | Bottom Entry | 29.6 | 3.661 " | 43.4 mm | 1.709 " | 93 mm | 1.165 in | ||||||||

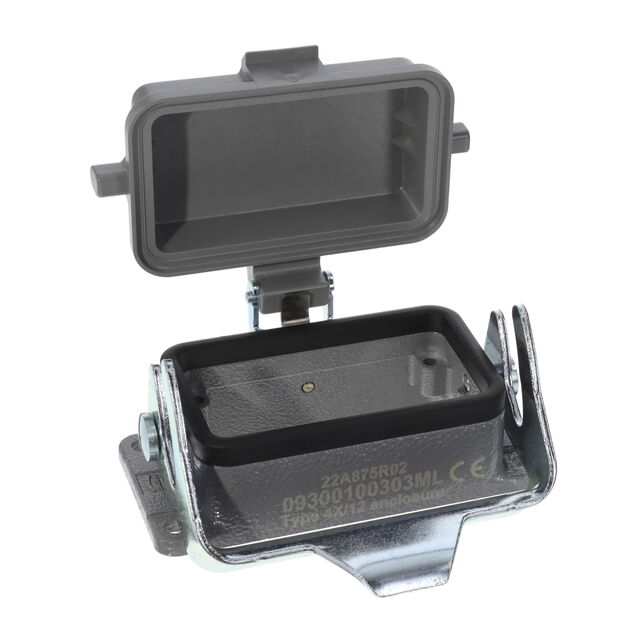

 HARTING | Base - Panel Mount | Locking Clip (2) on Base Bottom | 10B | Bottom Entry | 3.661 " | 1.709 " | 93 mm | 1.138 " | Gray | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 125 °C | -40 C | Powder Coated | 28.9 mm | 43.4 mm | ||
 HARTING | Base - Panel Mount | Locking Clip (1) on Base Bottom | 10B | Bottom Entry | 3.661 " | 1.709 " | 93 mm | 1.138 " | Gray | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 125 °C | -40 C | Powder Coated | 28.9 mm | 43.4 mm |
