9874MN Series
Manufacturer: Belden Inc.
Beta
⌘K

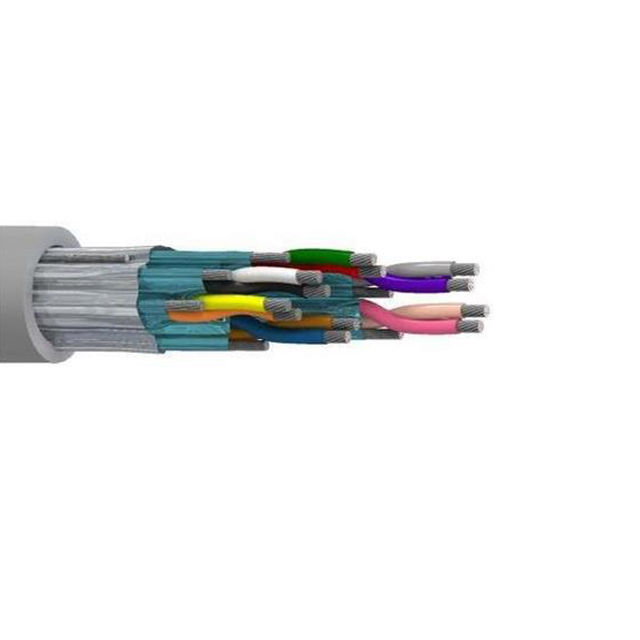

MULTI-PAIR 12COND 20AWG
| Part | Shield Material | Shield Coverage | Number of Conductors | Ratings | Jacket Color | Conductor Insulation | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 12 | UL Style 2937 | Yellow | Polypropylene (PP) | Copper Tinned | 100 ft | 30.5 m | 0.406 mm | 0.016 in | Foil | 26 | 34 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | 0.355 in | 9.02 mm | Drain Wire | 300 VDC | 80 °C | -20 ░C | Audio Control Instrumentation | 20 AWG | ||
Belden Inc. | Aluminum | 100 % | 12 | UL Style 2937 | Gray | Polypropylene (PP) | Copper Tinned | 0.406 mm | 0.016 in | Foil | 26 | 34 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | 0.355 in | 9.02 mm | Drain Wire | 300 VDC | 80 °C | -20 ░C | Audio Control Instrumentation | 20 AWG | 304.8 m | 1000 ft | ||
Belden Inc. | Aluminum | 100 % | 12 | UL Style 2937 | Gray | Polypropylene (PP) | Copper Tinned | 100 ft | 30.5 m | 0.406 mm | 0.016 in | Foil | 26 | 34 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | 0.355 in | 9.02 mm | Drain Wire | 300 VDC | 80 °C | -20 ░C | Audio Control Instrumentation | 20 AWG |
