333-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K

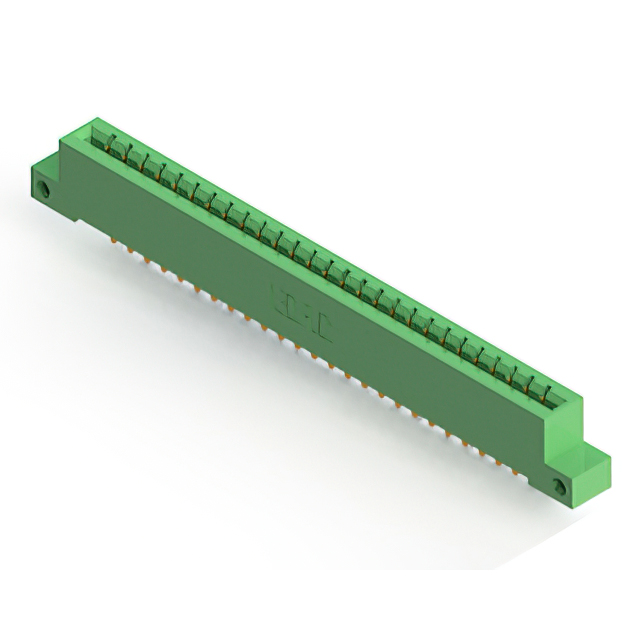

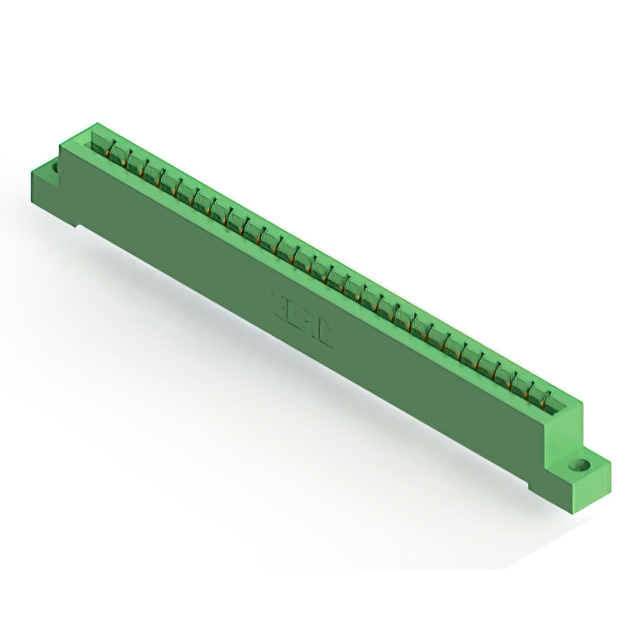

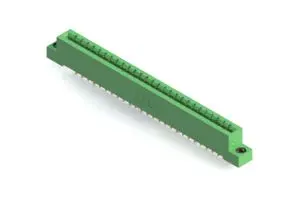

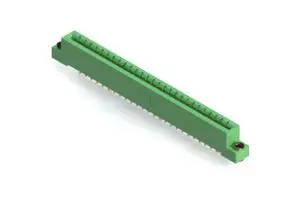

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Number of Positions | Contact Finish | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Gender | Read Out | Termination | Flange Feature | Card Type | Color | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | Floating Bobbin Flush Mount | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Solder Eyelet(s) | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Solder | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Solder | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 27 | Gold | 27 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Female | Single | Wire Wrap | Non Specified - Single Edge | Green | Copper Alloy | 0.25 Ám | 10 Áin | Cantilever | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm |
