powerpole-r-pp120 Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K
CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; POWERPOLE® PP120; BLUE
| Part | Note | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Material - Insulation | Voltage Rating | Mounting Type | Features | Number of Rows | Color | Contact Type | Contact Termination | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

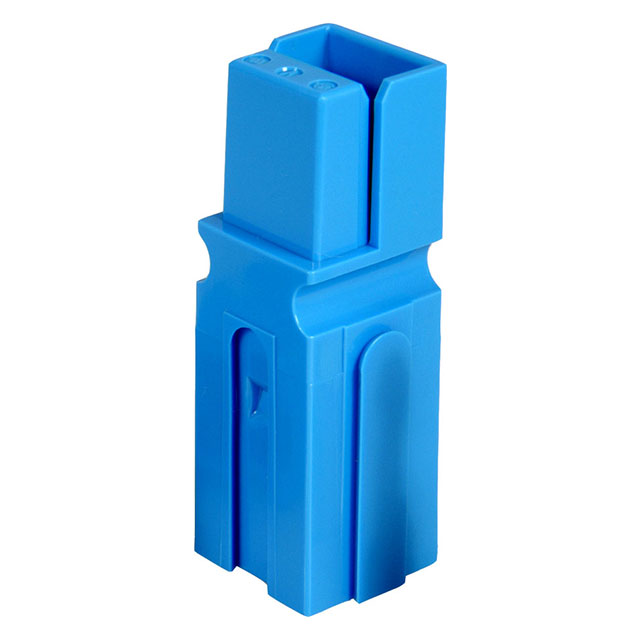

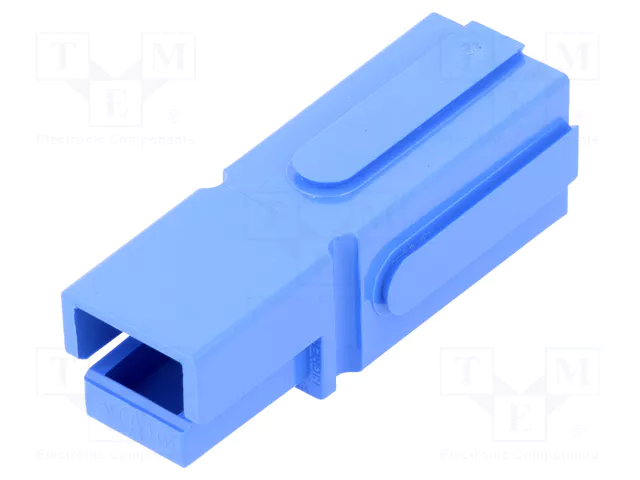

 Anderson Power Products, Inc. | Contacts Not Included | 120 A | -20 ░C | 105 ░C | Spring Retention | Polycarbonate (PC) | 600 V | Free Hanging (In-Line) | Stackable | 1 | Blue | Non-Gendered | Crimp | Non-Gendered | 1 |

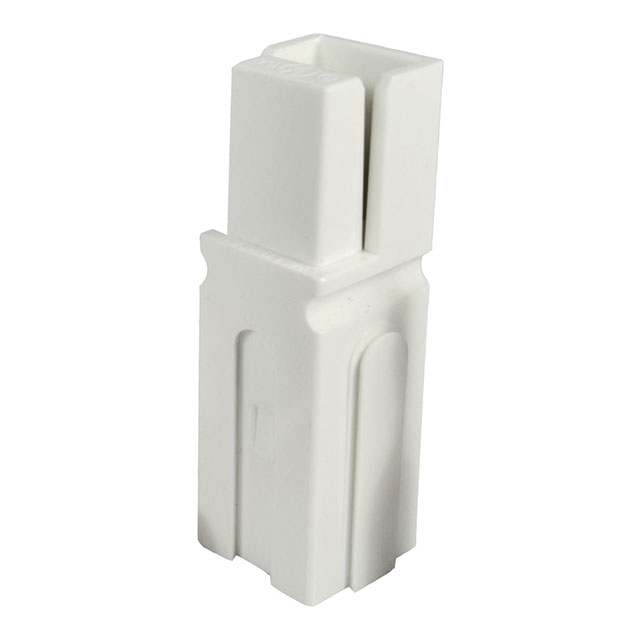

 Anderson Power Products, Inc. | Contacts Not Included | 120 A | -20 ░C | 105 ░C | Spring Retention | Polycarbonate (PC) | 600 V | Free Hanging (In-Line) | Stackable | 1 | White | Non-Gendered | Crimp | Non-Gendered | 1 |

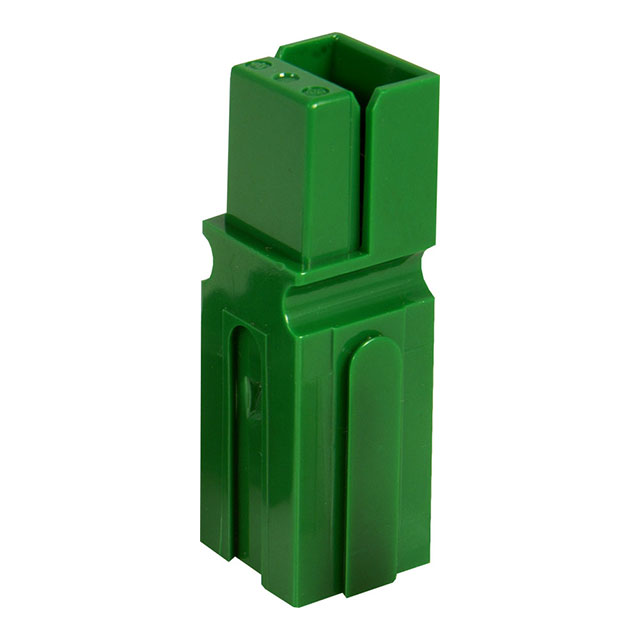

 Anderson Power Products, Inc. | Contacts Not Included | 120 A | -20 ░C | 105 ░C | Spring Retention | Polycarbonate (PC) | 600 V | Free Hanging (In-Line) | Stackable | 1 | Green | Non-Gendered | Crimp | Non-Gendered | 1 |
