Kmt20 Series Series

Tactile Switches tact Nano-Miniature SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches tact Nano-Miniature SMT Top Actuated

Part	Actuator Orientation	Actuator Type	Mounting Type	Switch Travel	Mechanical Life	Illumination	Outline [y]	Outline [x]	Termination Style	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Features	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Operating Force	Circuit

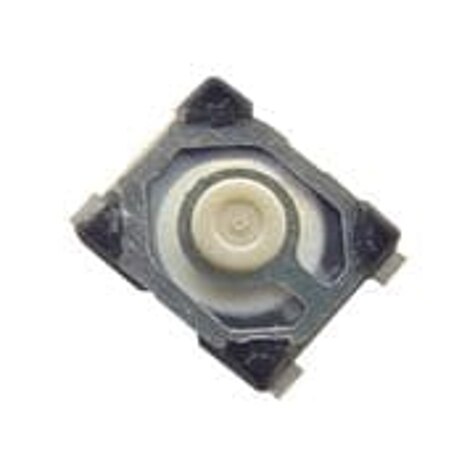

Littelfuse/Commercial Vehicle Products KMT213GHFLFG	Top Actuated	Standard	Surface Mount	0.13 mm	150000 Cycles	Non-Illuminated	2.6 mm	3 mm	Gull Wing	0.65 mm	0.01 A 32 VDC	Grounding Pin	125 °C	-40 °C	Off-Mom	100 gf	SPST-NO
Littelfuse/Commercial Vehicle Products KMT223NGHFLFG	Top Actuated	Standard	Surface Mount	0.13 mm	150000 Cycles	Non-Illuminated	2.6 mm	3 mm	Gull Wing	0.65 mm	0.01 A 32 VDC		125 °C	-40 °C	Off-Mom		SPST-NO
Littelfuse/Commercial Vehicle Products KMT223GHFLFG	Top Actuated	Standard	Surface Mount	0.13 mm	150000 Cycles	Non-Illuminated	2.6 mm	3 mm	Gull Wing	0.65 mm	0.01 A 32 VDC	Grounding Pin	125 °C	-40 °C	Off-Mom		SPST-NO
Littelfuse/Commercial Vehicle Products KMT213NGHFLFG	Top Actuated	Standard	Surface Mount	0.13 mm	150000 Cycles	Non-Illuminated	2.6 mm	3 mm	Gull Wing	0.65 mm	0.01 A 32 VDC		125 °C	-40 °C	Off-Mom	100 gf	SPST-NO

Catalog

Tactile Switches tact Nano-Miniature SMT Top Actuated

Key Features

• High number of cycles within the smallest packaging

• Smallest thickness with integrated actuator

• Smallest footprint

Description

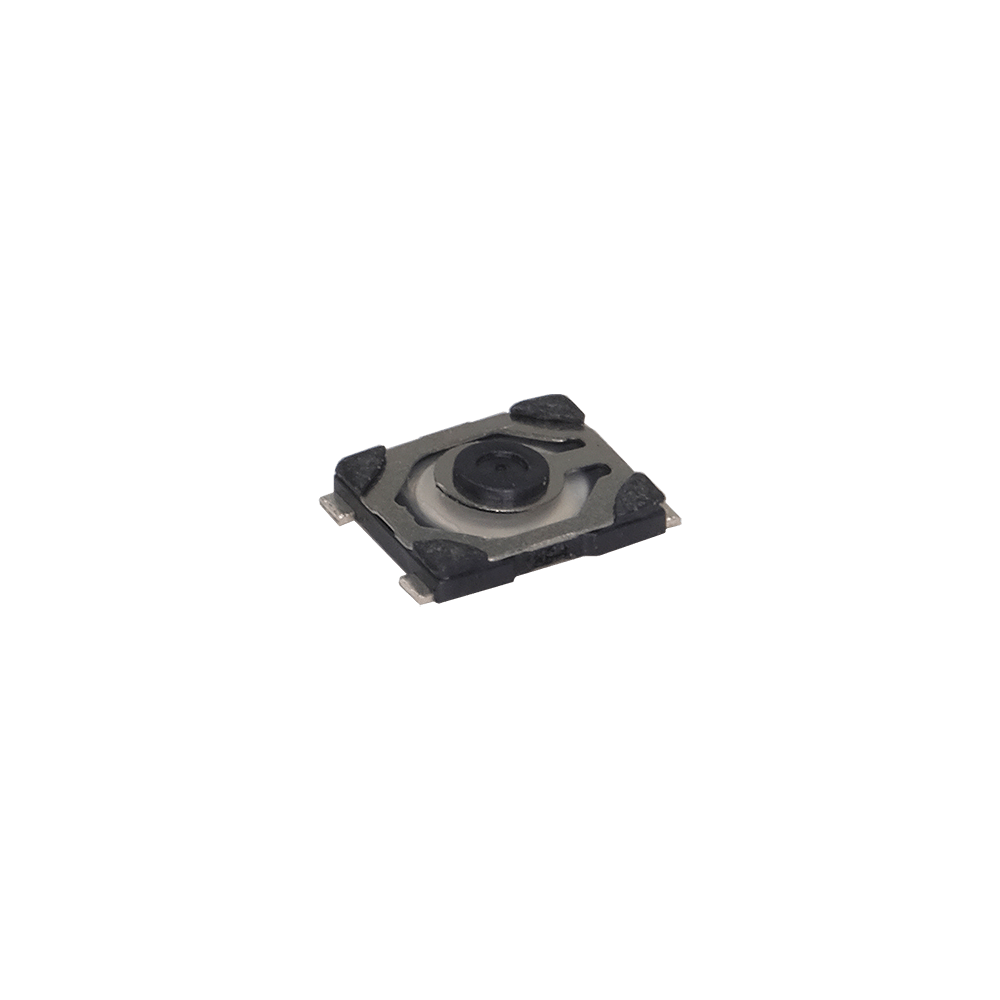

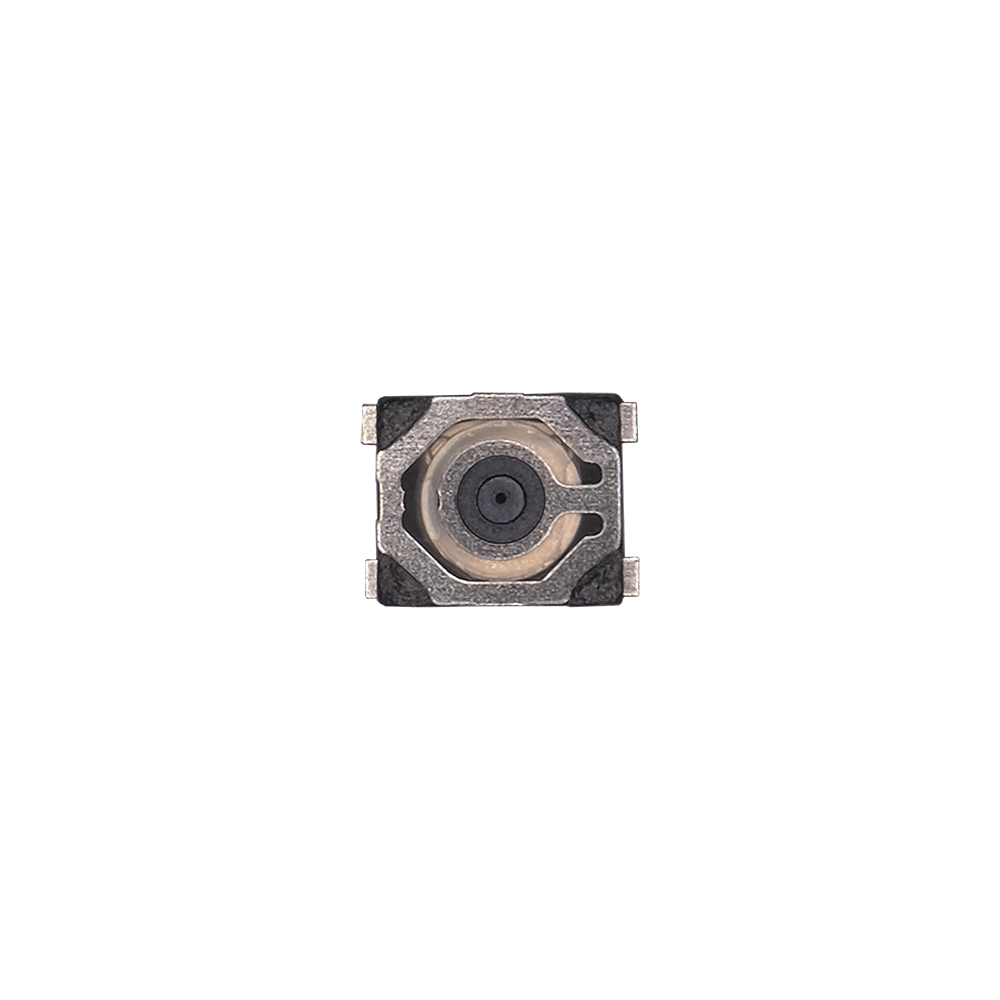

The KMT2 series nano-miniature SMT top actuated switch from C&K has the smallest footprint and thickness with an integrated actuator. Its high number of cycles within the smallest packaging makes it an ideal choice for designers working with limited space in applications such as hearing aids, Bluetooth headsets and MP3 accessories.
