PS36V Series

Catalog

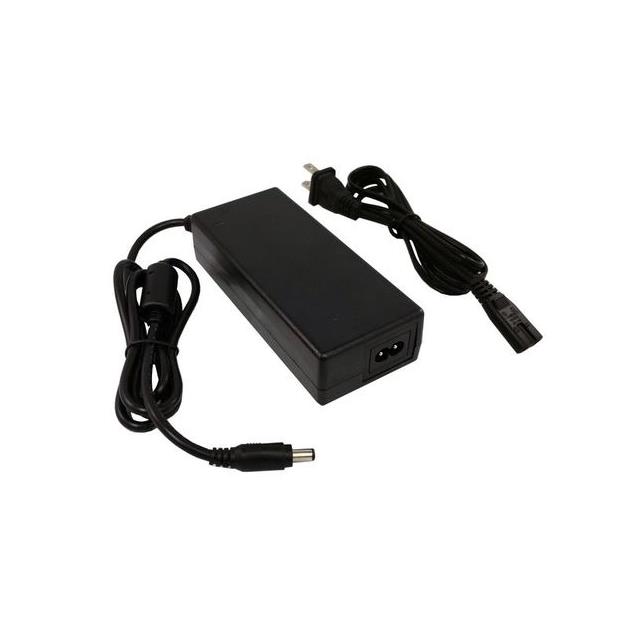

AC/DC DESKTOP ADAPTER 36V 90W

Part	Polarization	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Cord Length	Cord Length	Input Connector	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Current - Output (Max) [Max]	Voltage - Output	Approval Agency
Tycon Systems Inc. PS36V-2.5	Positive Center	Desktop (Class II)	11 mm	2.1 mm 5.5 mm	Barrel Plug	264 VAC	90 VAC	International	140 mm	60 mm	5.51 in	1.34 "	34 mm	2.36 "	Cord	1.2 m	47.2 in	IEC 320-C8	90 W	-20 ░C	60 °C	80 %	ITE (Commercial)	2.5 A	36 V	CE FCC UL
