STX Series

Catalog

STEREO JACK 3.5MM, SMT, 4POS, AL

Part	Voltage - Rated	Current Rating (Amps)	Contact Material	Contact Material - Plating	Body Color	Housing Material	Signal Lines	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Termination	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Connector Type	Features	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Thread Size	Body Material
Kycon, Inc. STX-3500-4N-577CTR	16 V	0.3 A	Copper Alloy	Silver	Green	Thermoplastic	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Solder	4	3	Right Angle Surface Mount	85 °C	-25 °C	Single Switch	Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in

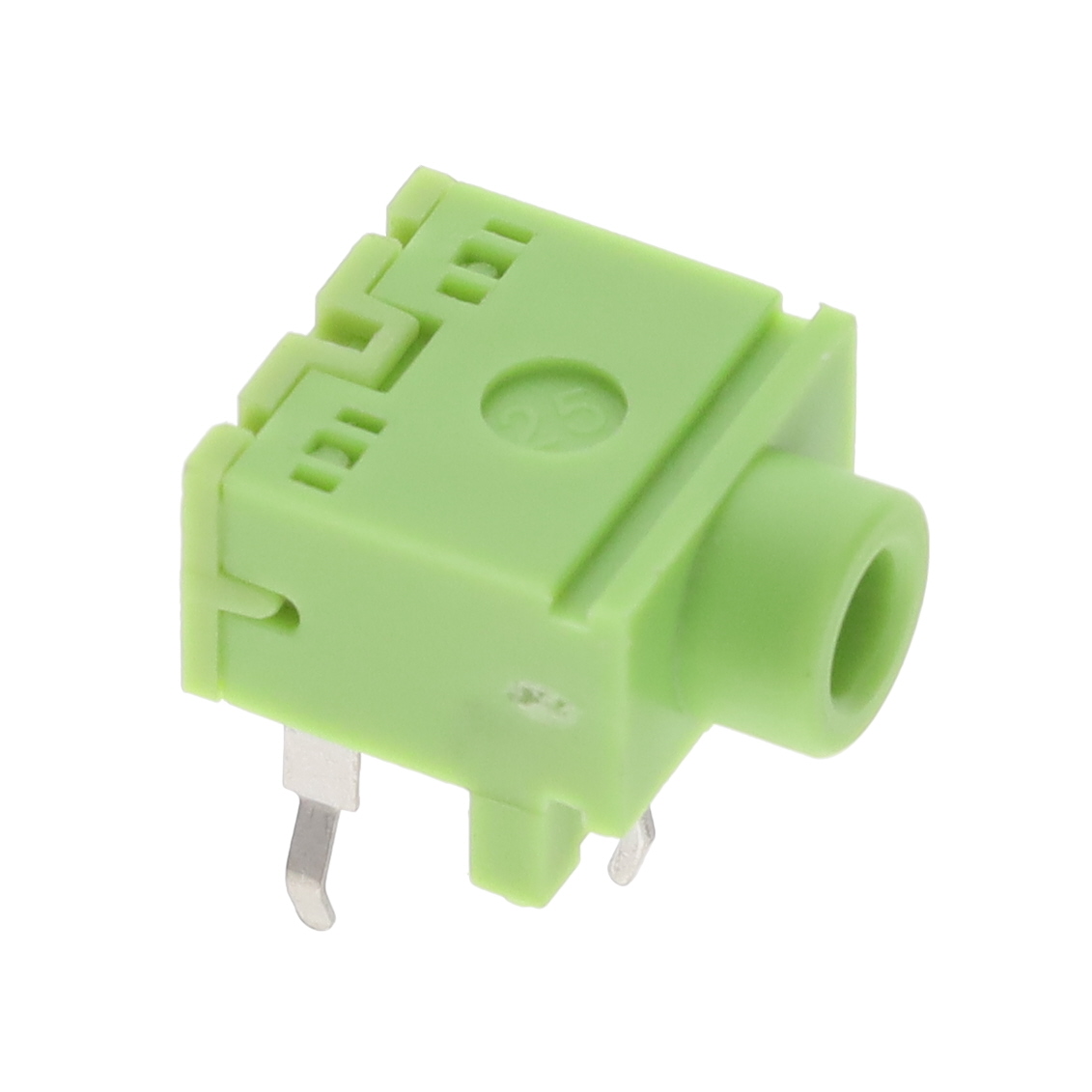

Kycon, Inc. STX-3120-3B-577C			Brass Phosphor Bronze	Tin	Lime	Glass Filled Thermoplastic	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Kinked Pin	3	3	Right Angle Through Hole	85 °C	-25 °C		Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in

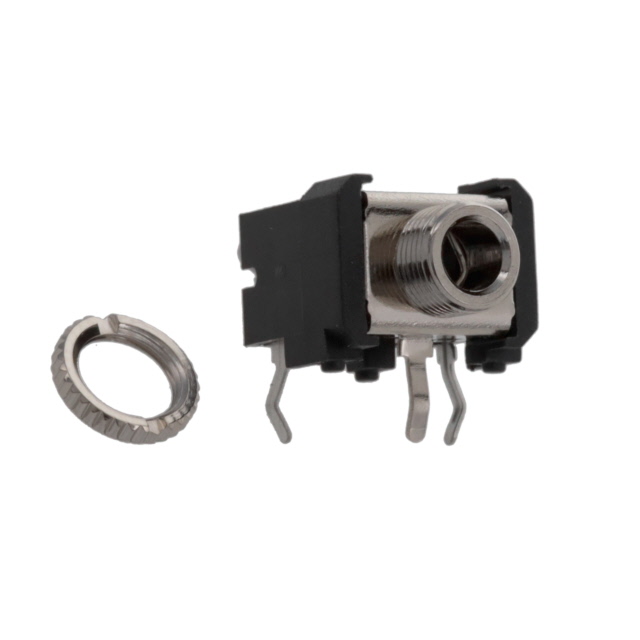

Kycon, Inc. STX-3100-3C	24 VDC	3 A	Brass Phosphor Bronze	Nickel Tin	Black Silver	Polybutylene Terephthalate (PBT)	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Kinked Pin	3	3	Right Angle Through Hole	85 °C	-25 °C		Phone Jack	Board Guide Thread Lock	0.125 in	3.5 mm	0.141 in	M6	Brass

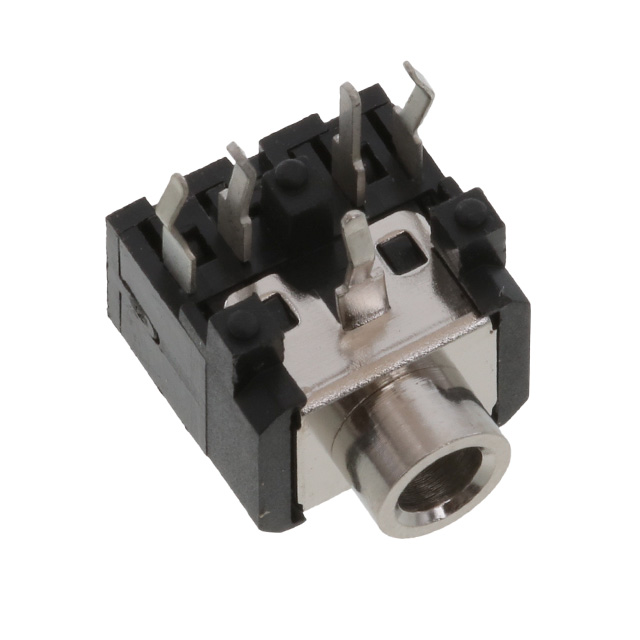

Kycon, Inc. STX-3200-5NB			Copper Alloy Phosphor Bronze	Nickel Tin	Black Silver	Polybutylene Terephthalate (PBT) Glass Filled	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Kinked Pin	5	3	Right Angle Through Hole	100 °C	-25 °C	Two Switches	Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in

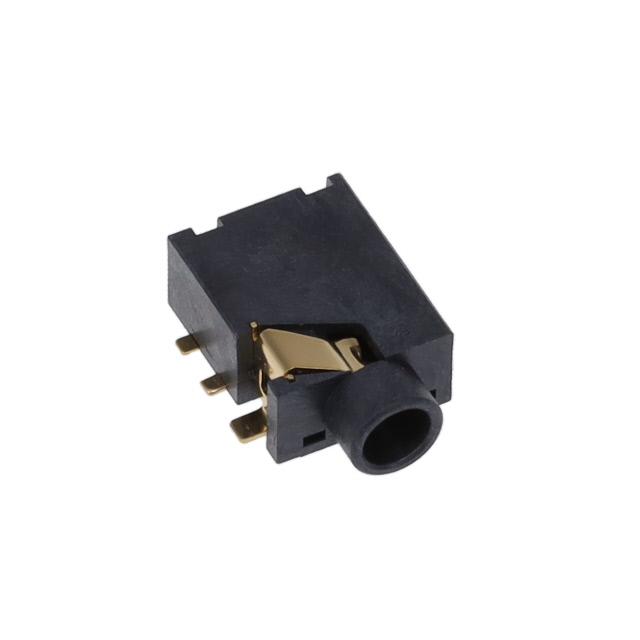

Kycon, Inc. STX-35332-5N-TR	16 V	0.3 A	Copper Alloy	Gold	Black	Plastic	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Solder Solder Eyelet	3	3	Right Angle Surface Mount	70 °C	-25 °C		Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in
Kycon, Inc. STX-3100-3N			Brass Phosphor Bronze	Nickel Tin	Black Silver	Polybutylene Terephthalate (PBT) Glass Filled	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Kinked Pin	3	3	Right Angle Through Hole	80 °C	-25 °C		Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in		Brass
Kycon, Inc. STX-3150-5N-577C	16 V	0.3 A	Phosphor Bronze	Tin	Lime	Polybutylene Terephthalate (PBT)	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Solder	5	3	Right Angle Through Hole	80 °C	-25 °C	Two Switches	Phone Jack		0.125 in	3.5 mm	0.141 in		Brass
Kycon, Inc. STX-3120-5B-157C			Brass Phosphor Bronze	Tin	Orange	Glass Filled Thermoplastic	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Kinked Pin	5	3	Right Angle Through Hole	85 °C	-25 °C	Two Switches	Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in
Kycon, Inc. STX-35398E-5N-TR			Copper Alloy	Gold	Black	Plastic	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Solder	5	3	Board Cutout Right Angle Surface Mount	85 °C	-25 °C	Single Switch	Phone Jack	Board Lock	0.125 in	3.5 mm	0.141 in

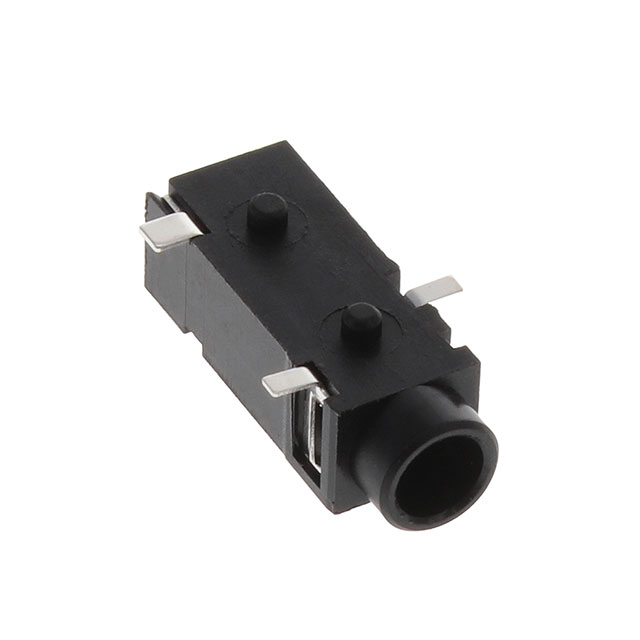

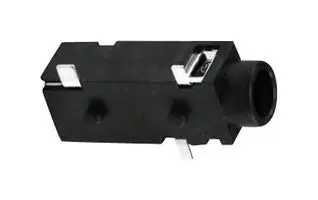

Kycon, Inc. STX-3500-3NTR	16 V	0.3 A	Copper Alloy	Silver	Black	Polyamide (PA) Nylon	Stereo (3 Conductor TRS)	Female	0.142 in	3.6 mm	Unshielded	Solder	3	3	Right Angle Surface Mount	85 °C	-25 °C		Phone Jack	Board Guide	0.125 in	3.5 mm	0.141 in
