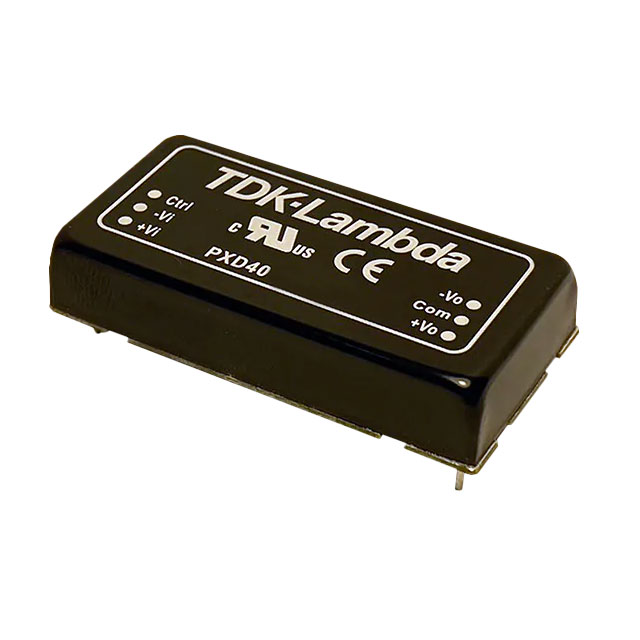

PXD40W Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC, PCB MOUNT, INPUT 24/48VDC, OUTPUT +/-24V 0.833A, 40W

Part	Package / Case	Control Features	Standard Number	Type	Applications	Mounting Type	Efficiency	Approval Agency	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Output 2	Voltage - Input (Min) [Min]	Size / Dimension	Current - Output (Max) [Max]
TDK Corporation PXD40-48WD24	6-DIP Module	Active High Enable	62368-1	Isolated Module	ITE (Commercial)	Through Hole	92 %	CE UKCA	833 mA	833 mA	75 V	2	1.6 kV	Adjustable Output Remote On/Off Remote Sense	40 W	105 C	-40 °C	24 V	-24 V	18 V	0.4 in 10.2 mm 25.4 mm 50.8 mm
TDK Corporation PXD40-24WD15	6-DIP Module	Active High Enable	62368-1	Isolated Module	ITE (Commercial)	Through Hole	91 %	CE UKCA	1.333 A	1.333 A	36 V	2	1.6 kV	Adjustable Output Remote On/Off Remote Sense	40 W	105 C	-40 °C	15 V	-15 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm

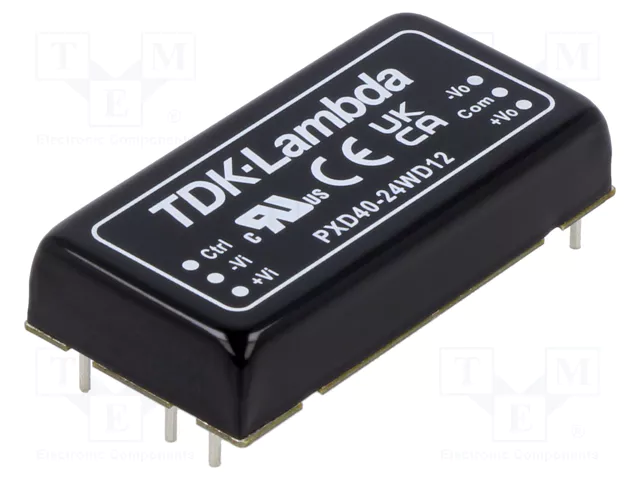

TDK Corporation PXD40-24WD12	6-DIP Module	Active High Enable	62368-1	Isolated Module	ITE (Commercial)	Through Hole	91 %	CE UKCA	1.666 A		36 V	2	1.6 kV	Adjustable Output Remote On/Off Remote Sense	40 W	105 C	-40 °C	12 V	-12 V	9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm
TDK Corporation PXD40-24WS24	6-DIP Module	Active High Enable	62368-1	Isolated Module	ITE (Commercial)	Through Hole	91 %	CE UKCA			36 V	1	1.6 kV	Adjustable Output Remote On/Off Remote Sense	40 W	105 C	-40 °C	24 V		9 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	1.666 A
