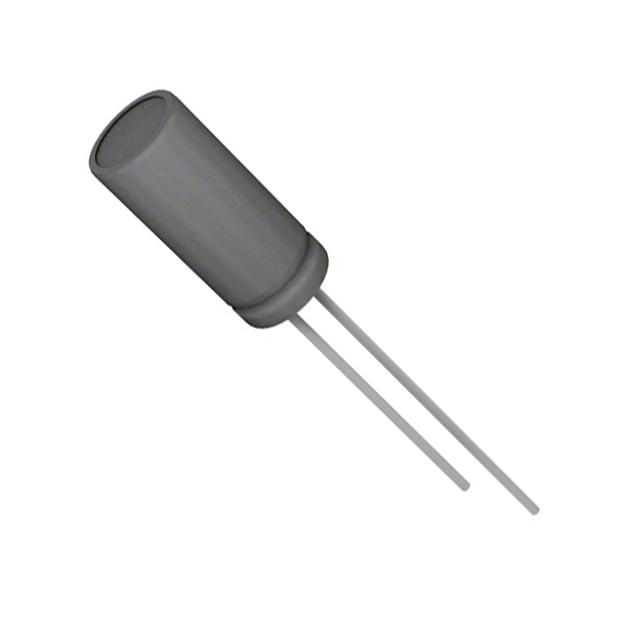

YXJ Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Package / Case	Voltage - Rated	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Polarization	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rubycon 100YXJ1M5X11	20 mA	0.492 in	12.5 mm	General Purpose	0.197 in	5 mm	4.5 Ohms	7 mA	5000 Hrs	Can Radial	100 V	1 µF	20 %	-40 C	105 ░C	2 mm	0.079 in	Polar	Through Hole
Rubycon 25YXJ470M10X12.5	865 mA	14 mm		General Purpose	0.394 in	10 mm	80 mOhms	648.75 mA	10000 Hrs	Can Radial	25 VDC	470 µF	20 %	-40 C	105 ░C	5 mm	0.197 "	Polar	Through Hole	0.551 in
Rubycon 6.3YXJ2200M10X16				General Purpose	0.394 in	10 mm	62 mOhms	1.04 A	8000 Hrs	Can Radial	6.3 VDC	2200 µF	20 %	-40 C	105 ░C	5 mm	0.197 "	Polar	Through Hole		17.5 mm	0.689 in
Rubycon 16YXJ47M5X11	250 mA	0.492 in	12.5 mm	General Purpose	0.197 in	5 mm	400 mOhms	137.5 mA	5000 Hrs	Can Radial	16 V	47 µF	20 %	-40 C	105 ░C	2 mm	0.079 in	Polar	Through Hole
