9001SK Series

Catalog

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS PSH BTTN OPRATR 30MM SK

Part	Type	Illumination	Actuator Type	Panel Cutout Dimensions [diameter]	(Select First, Then Apply Filters) Compatible Series	Requires	Ingress Protection	Voltage [Min]	Voltage [Max]	Termination Style	Ratings	Lens Style	Panel Cutout Dimensions [diameter]	Panel Cutout Shape	Lamp Color	Lens Color	Lens Transparency	Lens Size [diameter]	Mechanical Life	Switch Function	Color - Actuator/Cap	Mounting Type	Circuit	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]

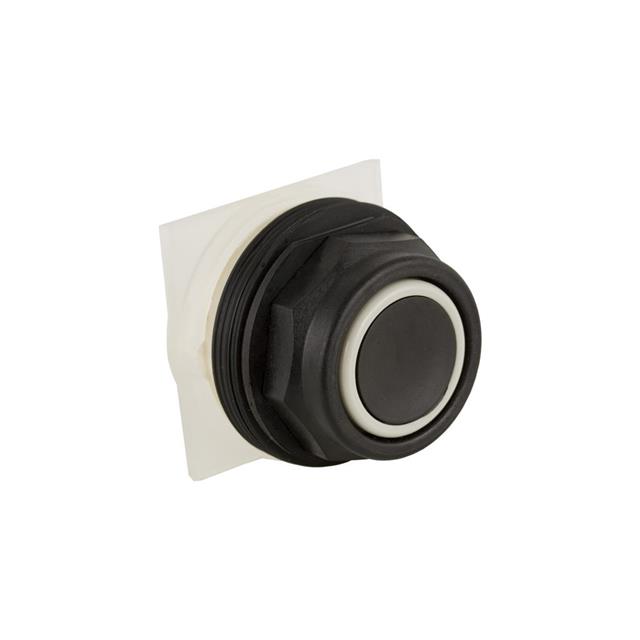

SCHNEIDER ELECTRIC 9001SKR1B	Momentary	Non-Illuminated	Pushbutton Round	30 mm	Schneider Harmony 9001SK	Contact Block(s)

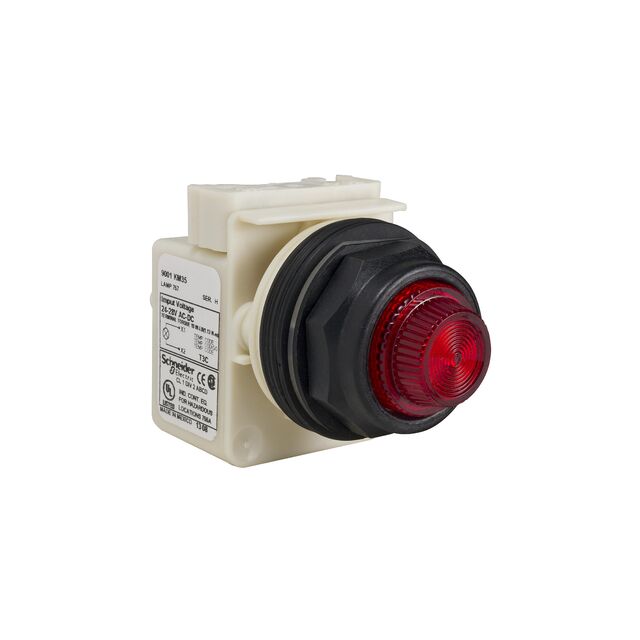

SCHNEIDER ELECTRIC 9001SKP35LR	LED			1.18 in			1 12 13 2 3 4 4X IP66 NEMA 3R	24 V	28 V	Screw Terminal	AC/DC	Round with Flat Top	30 mm	Round	Red

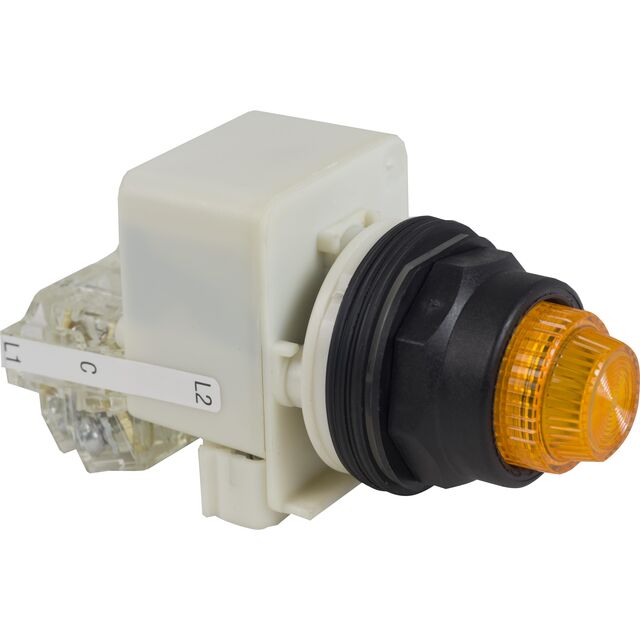

SCHNEIDER ELECTRIC 9001SKT1A31	Incandescent			1.18 in				110 V	120 V		AC	Round with Flat Top	30 mm	Round		Amber	Fresnel	30 mm

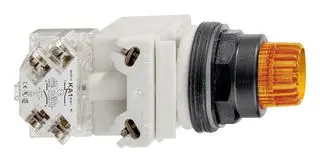

SCHNEIDER ELECTRIC 9001SK2L35LYA	Momentary	Illuminated - Amber	Pushbutton Round	30 mm	Schneider Harmony 9001SK	Contact Block(s) Illumination Source
SCHNEIDER ELECTRIC 9001SKT35LRR31	LED			1.18 in			1 12 13 2 3 4 4X IP66 NEMA 3R	24 V	28 V	Screw Terminal	AC/DC	Round with Flat Top	30 mm	Round	Red	Red	Fresnel	30 mm
SCHNEIDER ELECTRIC 9001SKS46	Maintained	Non-Illuminated	Selector	30 mm	Schneider Harmony 9001SK	Contact Block(s)

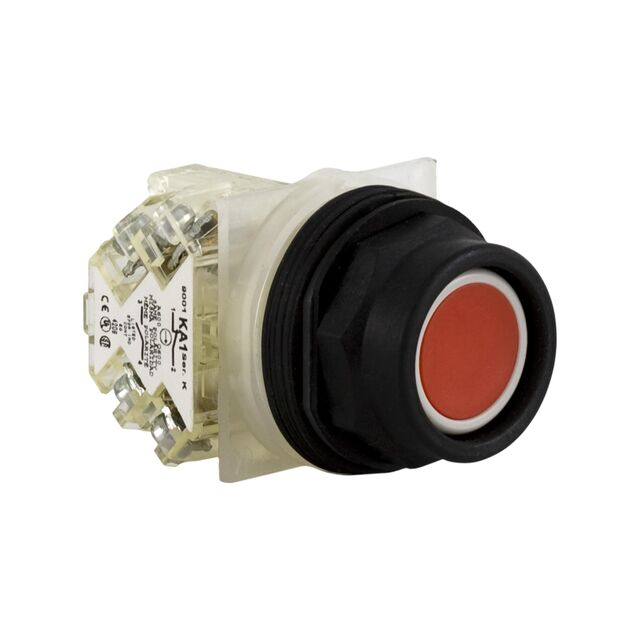

SCHNEIDER ELECTRIC 9001SKR2RH5	Standard		Button Round	30 mm			IP66 - Dust Tight Water Resistant			Screw Terminal									5000000 Cycles	Off-On	Red	Panel Mount Front	SPST-NO
SCHNEIDER ELECTRIC 9001SKR8P1GH25	Momentary	Illuminated - Green	Mushroom Pushbutton	30 mm	Schneider Harmony 9001SK	Contact Block(s) Illumination Source

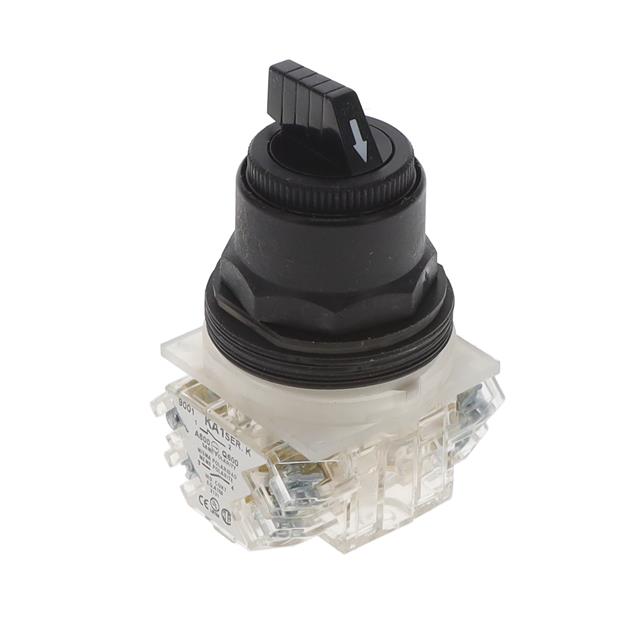

SCHNEIDER ELECTRIC 9001SKS43BH2	Standard	Non-Illuminated		30 mm			IP66 - Dust Tight Water Resistant			Screw Terminal										On-On		Panel Mount	DPDT	CE CSA UL	-25 °C	70 °C

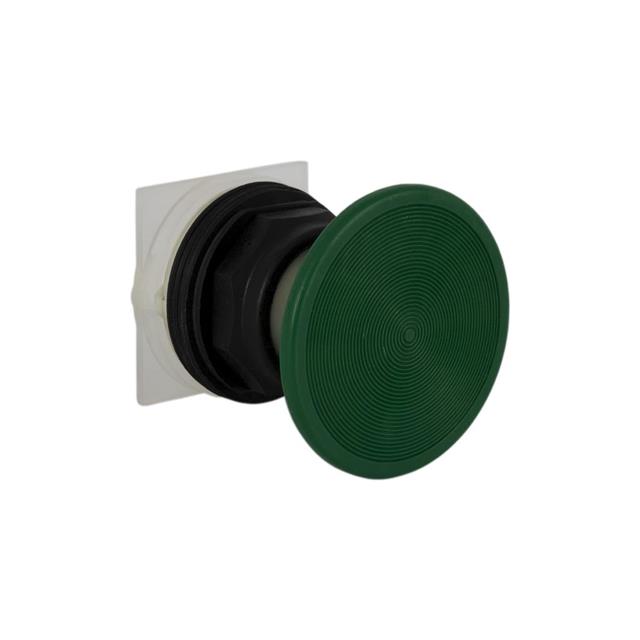

SCHNEIDER ELECTRIC 9001SKR25G	Maintained	Non-Illuminated	Mushroom Pushbutton	30 mm	Schneider Harmony 9001SK	Contact Block(s)
