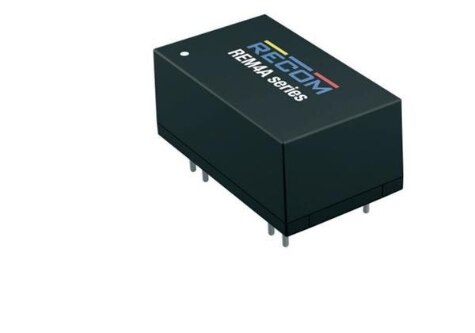

4W DC/DC-CONVERTER 'MEDLINE' DIP16 5KV REG 2:1
4W DC/DC-CONVERTER 'MEDLINE' DIP16 5KV REG 2:1
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Approval Agency | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 2 | Voltage - Isolation | Applications | Control Features | Voltage - Input (Max) [Max] | Voltage - Output 1 | Type | Standard Number | Features | Current - Output (Max) [Max] | Efficiency | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2 | 4.5 V | 146 mA | 105 C | -40 °C | Through Hole | 16-DIP Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.2 mm | 14.4 mm | 0.4 " | -12 V | 5000 V | ITE (Commercial) Medical | Active High Enable | 12 V | 12 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | |||
 Recom Power | 1 | 18 V | 105 C | -40 °C | Surface Mount | 16-SMD Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.5 mm | 14.4 mm | 0.41 in | 5000 V | ITE (Commercial) Medical | Active High Enable | 36 V | 12 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | 292 mA | 83 % | |||
 Recom Power | 1 | 4.5 V | 105 C | -40 °C | Surface Mount | 16-SMD Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.5 mm | 14.4 mm | 0.41 in | 5000 V | ITE (Commercial) Medical | Active High Enable | 12 V | 12 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | 292 mA | ||||
 Recom Power | 1 | 18 V | 105 C | -40 °C | Through Hole | 16-DIP Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.2 mm | 14.4 mm | 0.4 " | 5000 V | ITE (Commercial) Medical | Active High Enable | 36 V | 12 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | 292 mA | 83 % | |||
Recom Power | 1 | 18 V | 105 C | -40 °C | Through Hole | 16-DIP Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.2 mm | 14.4 mm | 0.4 " | 5000 V | ITE (Commercial) Medical | Active High Enable | 36 V | 24 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | 146 mA | ||||
 Recom Power | 2 | 18 V | 117 mA | 105 C | -40 °C | Through Hole | 16-DIP Module 7 Leads | cURus UL | 4 W | 0.57 " | 24.3 mm | 0.96 " | 10.2 mm | 14.4 mm | 0.4 " | -15 V | 5000 V | ITE (Commercial) Medical | Active High Enable | 36 V | 15 V | Isolated Module | 60601-1; 62368-1 | Remote On/Off | 117 mA |
