WR9ME1000 Series

Catalog

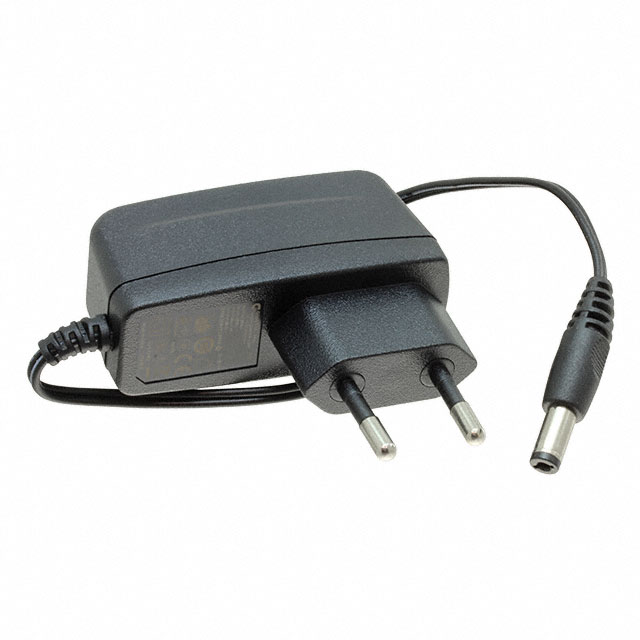

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Approval Agency	Form	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	No Load Power Consumption	Input Connector	Standard Number	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Applications	Efficiency	Voltage - Output	Output Connector [x]	Output Connector [diameter]	Output Connector
GlobTek, Inc. WR9ME1000CCP-F(R6B)	CB CE EAC LPS UkrSEPRO	Wall Mount	50 °C	0 °C	1 A	12 W	Europe	Positive Center	264 VAC	90 VAC	Fixed Blade	75 mW	CEE 7/16	60950-1	1.5 m	59 in	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	ITE (Commercial)	Level VI	12 V	11 mm	2.1 mm 5.5 mm	Barrel Plug
GlobTek, Inc. WR9ME1000LCP-F(R6B)	CB CE EAC LPS UkrSEPRO	Wall Mount	50 °C	0 °C	1 A	12 W	Europe	Positive Center	264 VAC	90 VAC	Fixed Blade	75 mW	CEE 7/16	60950-1	1.5 m	59 in	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	ITE (Commercial)	Level VI	12 V	11 mm	2.5 mm 5.5 mm	Barrel Plug
