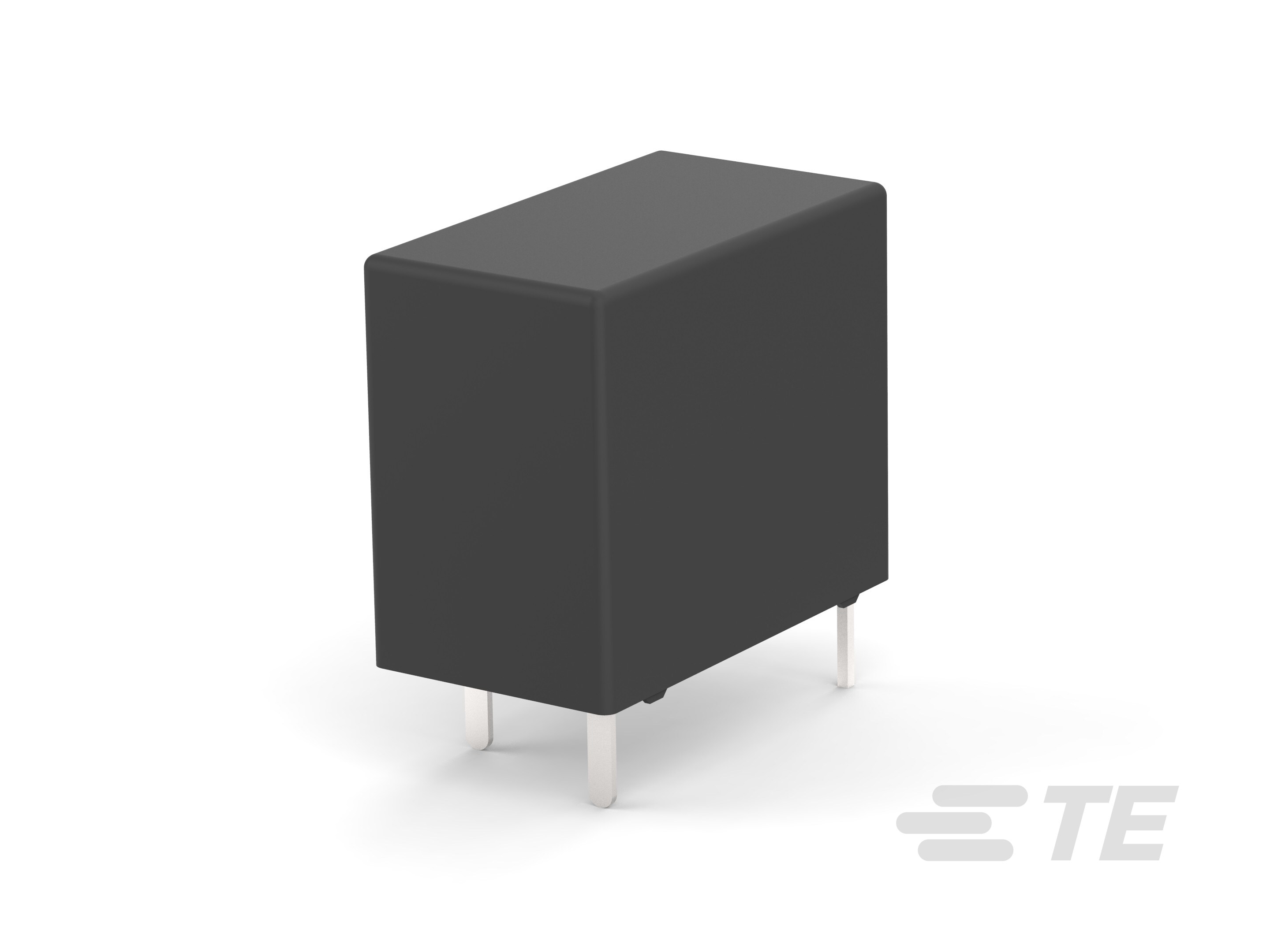

OEG Miniature PCB Relay OJT Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 12V
| Part | Termination Style | Contact Form | Coil Voltage | Contact Rating (Current) | Coil Type | Release Time | Switching Voltage [Max] | Approval Agency | Operate Time | Contact Material | Mounting Type | Relay Type | Coil Insulation | Coil Current | Must Operate Voltage | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Resistance | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 12 VDC | 5 A | Non Latching | 4 ms | 30 VDC 277 VAC | CQC cULus TUV VDE | 15 ms | Silver Tin Oxide (AgSnO) | Through Hole | General Purpose | Class F | 0.0375 A | 8.4 VDC | 150 W 1385 VA | 85 °C | -30 ░C | 0.6 VDC | ||
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 5 VDC | 5 A | Non Latching | 4 ms | 250 VAC | CQC cURus TUV VDE | 15 ms | Silver Tin Oxide (AgSnO) | Through Hole | General Purpose | 50 mA | 3.75 VDC | 1250 VA | 85 °C | -30 ░C | 0.25 VDC | 100 Ohms | Sealed - Flux Protection | |
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 24 VDC | 5 A | Non Latching | 4 ms | 250 VAC | CQC cURus TUV VDE | 15 ms | Silver Tin Oxide (AgSnO) | Through Hole | General Purpose | Class F | 18.8 mA | 16.8 VDC | 1250 VA | 85 °C | -30 ░C | 1.2 VDC | 1280 Ohms | |
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 24 VDC | 5 A | Non Latching | 4 ms | 30 VDC 277 VAC | CQC cULus TUV VDE | 15 ms | Silver Tin Oxide (AgSnO) | Through Hole | General Purpose | Class F | 18.8 mA | 16.8 VDC | 150 W 1385 VA | 85 °C | -30 ░C | 1.2 VDC | Sealed - Flux Protection | |
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 12 VDC | 5 A | Non Latching | 4 ms | 30 VDC 250 VAC | CQC cURus TUV VDE | 15 ms | Silver Tin Oxide (AgSnO) | Through Hole | General Purpose | Class F | 0.0375 A | 8.4 VDC | 1250 VA | 85 °C | -30 ░C | 0.6 VDC | 320 Ohms | Sealed - Flux Protection |
