IRFHS8242 Series
Manufacturer: INFINEON
Beta
⌘K

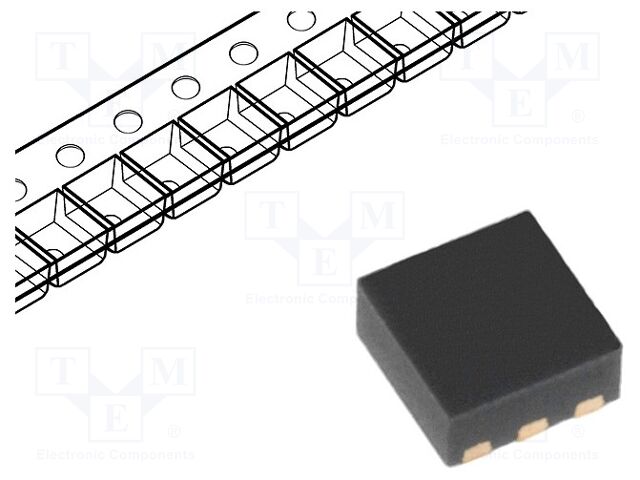

IR MOSFET™ N-CHANNEL POWER MOSFET ; PQFN 2 X 2 PACKAGE; 13 MOHM;
| Part | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs [Max] | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | Vgs(th) (Max) @ Id | Vgs (Max) | Power Dissipation (Max) | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds | Drain to Source Voltage (Vdss) | Technology | Gate Charge (Qg) (Max) @ Vgs | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 150 °C | -55 °C | N-Channel | 9.9 A 21 A | 13 mOhm | 6-PQFN (2x2) | 4.5 V 10 V | 2.35 V | 20 V | 2.1 W | Surface Mount | 653 pF | 25 V | MOSFET (Metal Oxide) | 10.4 nC | 6-PowerVDFN |
INFINEON | 150 °C | -55 °C | N-Channel | 9.9 A 21 A | 13 mOhm | 4.5 V 10 V | 2.35 V | 20 V | 2.1 W | Surface Mount | 653 pF | 25 V | MOSFET (Metal Oxide) | 10.4 nC | 6-PowerVDFN |
