CRGB1318 Series
Manufacturer: Stanley Electric Co
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

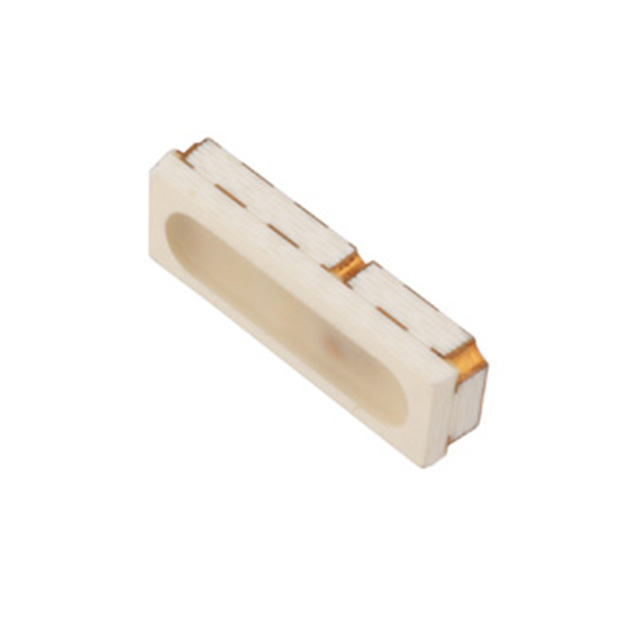

LED RGB DIFFUSED SMD
| Part | Color | Lens Size | Height (Max) | Wavelength - Dominant Color | Wavelength - Dominant (Blue) | Wavelength - Dominant (Green) | Wavelength - Dominant (Red) | Voltage - Forward (Vf) (Typ) Color | Voltage - Forward (Vf) (Typ) (Green) | Voltage - Forward (Vf) (Typ) (Blue) | Voltage - Forward (Vf) (Typ) (Red) | Mounting Type | Current - Test Colors | Current - Test (Green) | Current - Test (Red) | Current - Test (Blue) | Lens Style | Lens Color | Size / Dimension Width | Size / Dimension Length | Lens Transparency | Configuration | Package / Case | Millicandela Rating Colors | Millicandela Rating (Green) | Millicandela Rating (Red) | Millicandela Rating (Blue) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Blue (RGB) Green Red | 4 mm | 1.35 mm | Blue Green Red | 470 nm | 529 nm | 622 nm | Blue Green Red | 3.1 V | 3 V | 2.1 V | Surface Mount | Blue Green Red | 20 mA | 24 mA | 14 mA | Flat Top Oval | White | 1.15 mm | 4.5 mm | Diffused | Independent | 6-SMD No Lead | Blue Green Red | 1750 mcd | 750 mcd | 260 mcd |
