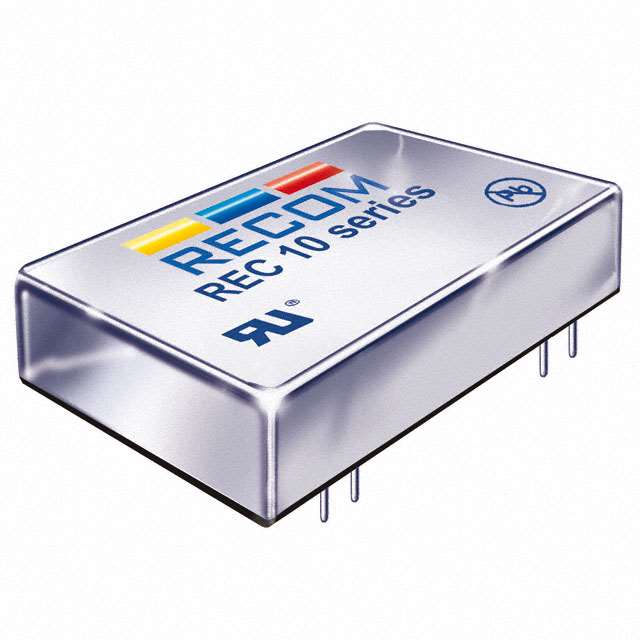

REC10-S_D(Z)/M Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-36VIN +/-15V THT

Part	Voltage - Isolation	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Features	Number of Outputs	Power (Watts)	Voltage - Input (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Applications	Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 1	Voltage - Output 2	Current - Output (Max) [Max]	Size / Dimension	Current - Output (Max) [Max]

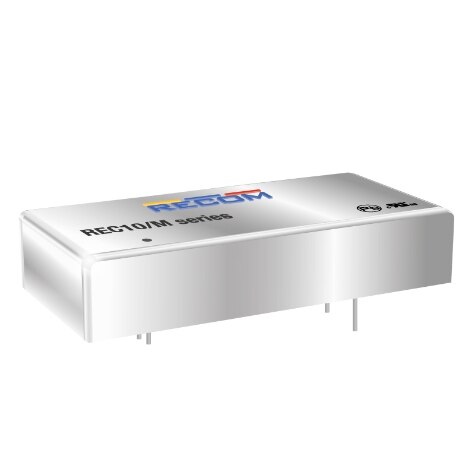

Recom Power REC10-2415DZ/H2/M	2000 V	333 mA	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	OCP Remote On/Off SCP UVLO	2	10 W	36 V	24-DIP Module	9 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	15 V	-15 V
Recom Power REC10-2415SZ/H3/M	3000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	OCP Remote On/Off SCP UVLO	1	10 W	36 V	24-DIP Module	9 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	15 V		667 mA
Recom Power REC10-4812SZ/H2/M	2000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	85 %	OCP Remote On/Off SCP UVLO	1	10 W	75 V	24-DIP Module	36 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	12 V		833 mA
Recom Power REC10-4805D/H2/M	2000 V	1 A	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	83 %	OCP Remote On/Off SCP UVLO	2	10 W	75 V	24-DIP Module	36 V	ITE (Commercial)	Isolated Module	Active High Enable	81 °C	-40 C	Through Hole	5 V	-5 V
Recom Power REC10-2412SZ/H2/M	2000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	85 %	OCP Remote On/Off SCP UVLO	1	10 W	36 V	24-DIP Module	9 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	12 V		833 mA
Recom Power REC10-4812SZ/H3/M	3000 V								85 %	OCP Remote On/Off SCP UVLO	1	10 W	75 V	6-DIP Module	18 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	12 V		833 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power REC10-2415S/H3/M	3000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	OCP Remote On/Off SCP UVLO	1	10 W	36 V	24-DIP Module	18 V	ITE (Commercial)	Isolated Module	Active High Enable	81 °C	-40 C	Through Hole	15 V		667 mA
Recom Power REC10-1215S/H3/M	3000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	OCP Remote On/Off SCP UVLO	1	10 W	18 V	24-DIP Module	9 V	ITE (Commercial)	Isolated Module	Active High Enable	81 °C	-40 C	Through Hole	15 V		667 mA
Recom Power REC10-4812DZ/H2/M	2000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	85 %	OCP Remote On/Off SCP UVLO	2	10 W	75 V	24-DIP Module	18 V	ITE (Commercial)	Isolated Module	Active High Enable	71 °C	-40 C	Through Hole	12 V	-12 V	416 mA		416 mA
Recom Power REC10-2412D/H2/M	2000 V		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	86 %	OCP Remote On/Off SCP UVLO	2	10 W	36 V	24-DIP Module	18 V	ITE (Commercial)	Isolated Module	Active High Enable	81 °C	-40 C	Through Hole	12 V	-12 V	416 mA		416 mA
