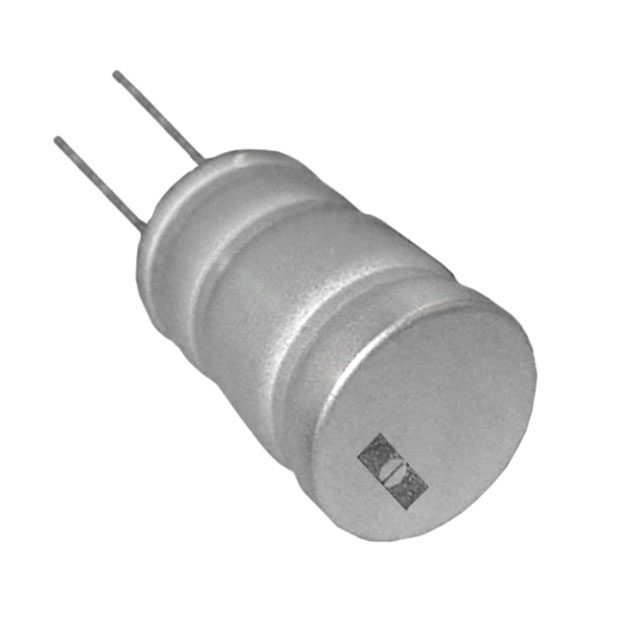

GVD Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 100V 510UF 20% TOL. AEC-Q200
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ripple Current @ Low Frequency | Ratings | Size / Dimension [diameter] | Size / Dimension [diameter] | Polarization | Ripple Current @ High Frequency | Tolerance | Package / Case | Lifetime @ Temp. | Lead Spacing | Lead Spacing | Voltage - Rated | Applications | Capacitance | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 1.24 in | 31.5 mm | -40 C | 135 °C | Through Hole | 1.9 A | AEC-Q200 | 0.709 in | 18 mm | Polar | 3.8 A | 20 % | Can Radial | 2000 Hrs | 0.295 in | 7.5 mm | 100 V | Automotive | 510 µF | 38 mOhm |
