FF300R17 Series

Manufacturer: INFINEON

Catalog

THE FF300R17KE4 IS A DUAL IGBT4 - E4 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 300 A.

Part	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	IGBT Type	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Package / Case	Input	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]
INFINEON FF300R17KE4HOSA1	2.3 V	Module	-40 C	150 °C	2 Independent	Trench Field Stop	24.5 nF	1 mA	1700 V	Chassis Mount	Module	Standard	1.8 kW
INFINEON FF300R17ME4PBPSA1	2.3 V	Module	-40 C	150 °C	Half Bridge	Trench Field Stop	24.5 nF	3 mA	1700 V	Chassis Mount	Module	Standard	20 mW	600 A

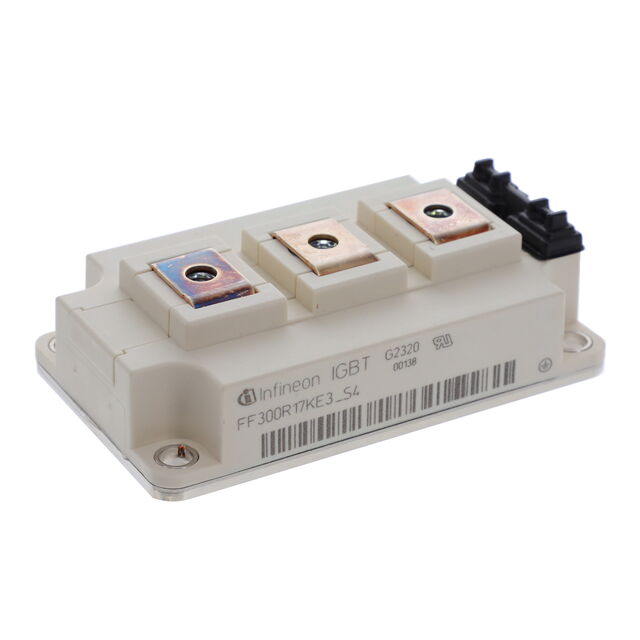

INFINEON FF300R17KE3S4HOSA1	2.4 V	Module	-40 C	125 °C	Half Bridge Inverter	Trench Field Stop	27 nF	3 mA	1700 V	Chassis Mount	Module	Standard	1450 W
INFINEON FF300R17ME4BOSA1	2.3 V	Module	-40 °C	150 °C	Half Bridge	NPT		3 mA	1700 V	Chassis Mount	Module	Standard	1.8 kW	375 A
INFINEON FF300R17KE4PHOSA1	2.3 V	Module	-40 C	150 °C	Half Bridge	Trench Field Stop	24.5 nF	1 mA	1700 V	Chassis Mount	Module	Standard		600 A
INFINEON FF300R17ME4B11BOSA1	2.3 V	Module	-40 C	150 °C	2 Independent	Trench Field Stop	24.5 nF	3 mA	1700 V	Chassis Mount	Module	Standard	1.8 kW	375 A
INFINEON FF300R17KE3HOSA1	2.45 V	Module	-40 C	125 °C	2 Independent	Trench Field Stop	27 nF	3 mA	1700 V	Chassis Mount	Module	Standard	1450 W
