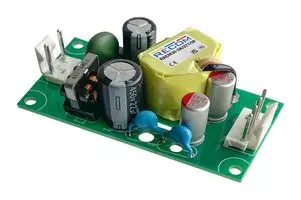

RACM30-K/277 Series
Manufacturer: Recom Power
Beta
⌘K
SWITCHING POWER SUPPLIES 30W 85-305VIN 15VOUT 2A
| Part | Number of Outputs | Efficiency | Mounting Type | Standard Number | Current - Output 1 | Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 | 90 % | Chassis Mount | 60601-1 61010-1 62368-1 | 2 A | Open Frame | 15 V | 90 °C | -40 °C | CE cURus EAC UKCA | 30 Watts | 25 mm | 76.2 mm | 1.5 " | 0.98 in | 3 " | 38.1 mm | ITE (Commercial) Laboratory Medical | 305 VAC 430 VDC | 85 VAC 120 VDC | 4000 V | |
 Recom Power | 1 | 89 % | Chassis Mount | 60601-1 61010-1 62368-1 | 1.25 A | Open Frame | 24 V | 90 °C | -40 °C | CE cURus EAC UKCA | 30 Watts | 25 mm | 76.2 mm | 1.5 " | 0.98 in | 3 " | 38.1 mm | ITE (Commercial) Laboratory Medical | 305 VAC 430 VDC | 85 VAC 120 VDC | 4000 V |
