SA28604 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

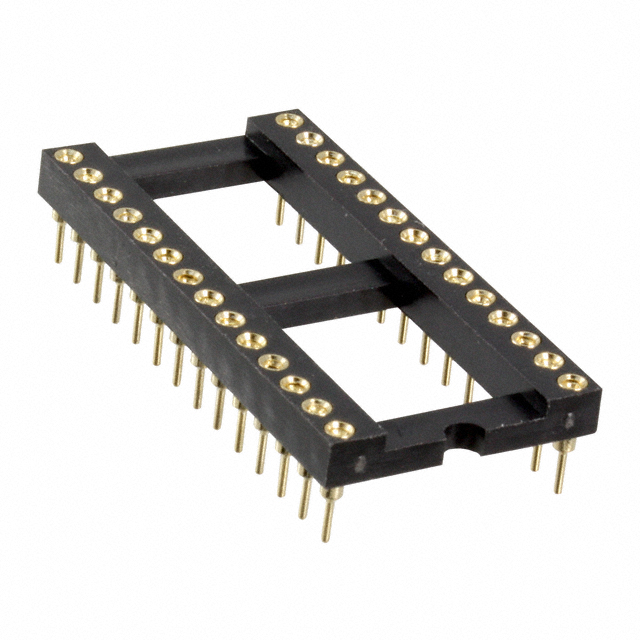

CONN IC DIP SOCKET 28POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Housing Material | Pitch - Mating | Pitch - Mating | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Type [custom] | Type [custom] | Type | Number of Positions or Pins (Grid) | Termination | Mounting Type | Contact Material - Post [custom] | Contact Material - Mating | Contact Finish - Post | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 3 A | 4 mOhm | Glass Filled Polyester Thermoplastic | 0.1 " | 2.54 mm | Open Frame | Flash | 2.03 µm | 80 µin | -40 C | 105 ░C | 0.1 in | 2.54 mm | 15.24 mm | 0.6 in | DIP | 28 | Solder | Through Hole | Brass | Beryllium Copper | Gold | Gold |
