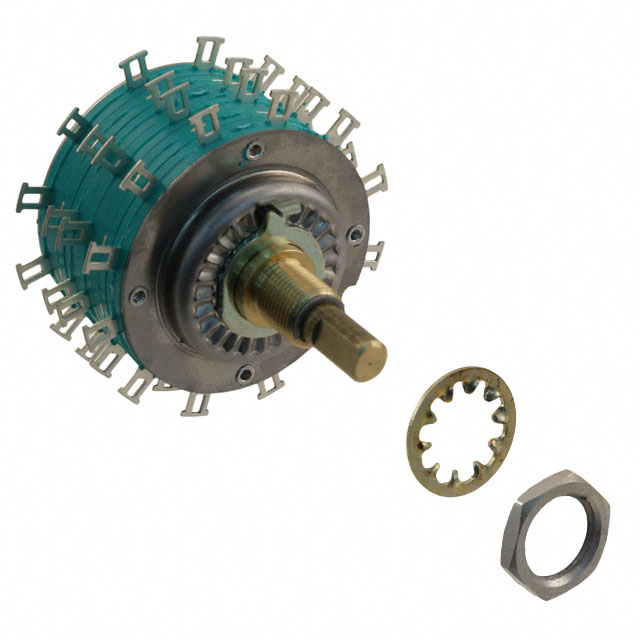

Rotary Switches 1pl 2deck 24Pos 15dg NoShrtng Cont Rotat
Rotary Switches 1pl 2deck 24Pos 15dg NoShrtng Cont Rotat
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Number of Positions | Number of Decks | Angle of Throw | Contact Finish | Actuator Length [x] | Actuator Type | Depth Behind Panel [z] | Voltage Rating - DC | Contact Material | Number of Poles per Deck | Circuit per Deck | Mounting Type | Contact Timing | Termination Style | Current Rating (Amps) | Index Stops |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 125 V | 24 | 2 | 15 ° | Silver | 14.29 mm | Flatted (6.35mm Dia) | 32.49 mm | 28 V | Brass | 1 | SP24T | Panel Mount | Non-Shorting (BBM) | Solder Lug | 1 A 500 mA | Continuous |
 Electroswitch | 9.78 mm | 125 V | 24 | 2 | 15 ° | Silver | 14.29 mm | Flatted (6.35mm Dia) | 32.49 mm | 28 V | Brass | 1 | SP24T | Panel Mount | Shorting (MBB) | Solder Lug | 1 A 500 mA | Continuous |
