Z-DOK+ Series

Catalog

CONN RCPT HIGH SPEED 96POS PCB

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Layout, Typical	Number of Positions	Connector Type	Termination	Number of Positions Loaded	Color	Connector Style	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical
TE Connectivity AMP Connectors 6367583-1	Board Lock Mating Guide	30 Áin	0.76 Ám	Gold	24 Differential Pairs 24 Ground 4 Utility	96	Blade Sockets Female Sockets Receptacle	Solder	All	Natural	High Speed	Right Angle Through Hole
TE Connectivity AMP Connectors 6367590-5

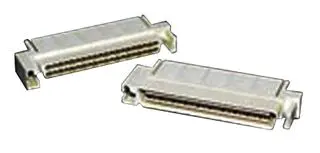

TE Connectivity AMP Connectors 6367580-4	Board Lock Guide Pin	30 Áin	0.76 Ám	Gold		100	Plug Male Pins and Blades	Solder	All	Natural	High Speed	Right Angle Through Hole	UL94 V-0	-55 C	85 °C	4 32
TE Connectivity AMP Connectors 6367580-3	Board Lock Guide Pin	30 Áin	0.76 Ám	Gold	24 Differential Pairs 24 Ground 4 Utility	96	Plug Male Pins and Blades	Solder	All	Natural	High Speed	Right Angle Through Hole

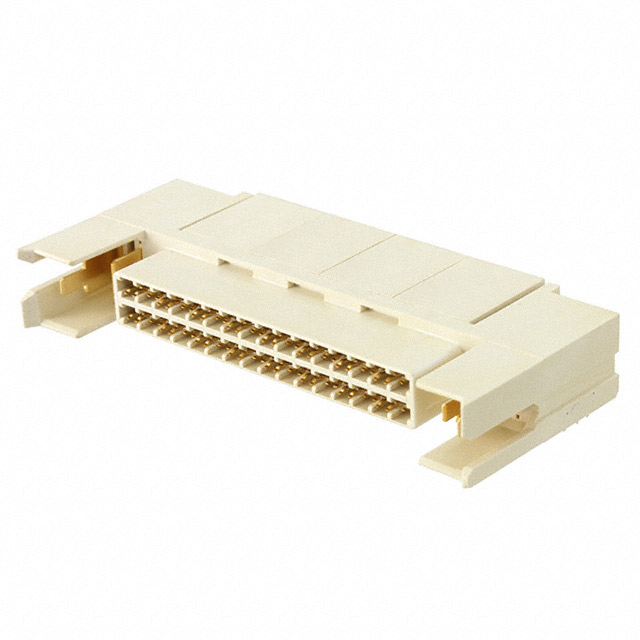

TE Connectivity AMP Connectors 6367584-1	Board Lock Mating Guide	30 Áin	0.76 Ám	Gold		100	Blade Sockets Female Sockets Receptacle	Solder	All	Natural	High Speed	Right Angle Through Hole	UL94 V-0	-55 C	85 °C	4 32
