BTF3080 Series
Manufacturer: INFINEON
Beta
⌘K
IC PWR SWITCH N-CHAN 1:1 TDSO-8
| Part | Rds On (Typ) | Output Configuration | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Switch Type | Package / Case | Package / Case [y] | Package / Case [x] | Voltage - Load [Min] | Voltage - Load [Max] | Fault Protection | Output Type | Ratio - Input:Output | Supplier Device Package | Mounting Type | Number of Outputs | Current - Output (Max) [Max] | Interface | Grade | Suggested Programming Environment | Interconnect System | Contents | Type | Function | Platform | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 71 mOhm | Low Side | Non-Inverting | -40 °C | 150 °C | AEC-Q100 | 5.5 V | 3 V | General Purpose | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | 3 V | 28 V | Over Current Over Voltage Short Circuit | N-Channel | 1:1 | PG-TDSO-8-31 | Surface Mount | 1 | 3 A | PWM | Automotive | |||||||

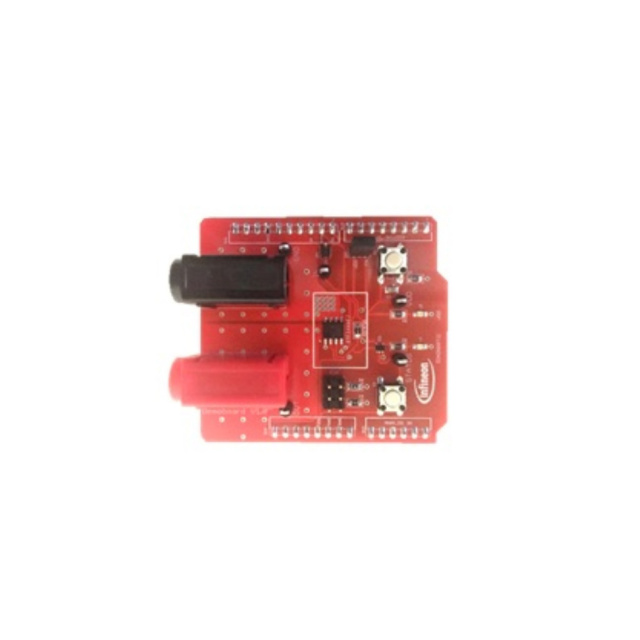

 INFINEON | Dave | Arduino R3 Shield | Board(s) | Power Management | Switch | Arduino | BTF3080EJ |
