RPC Series

Catalog

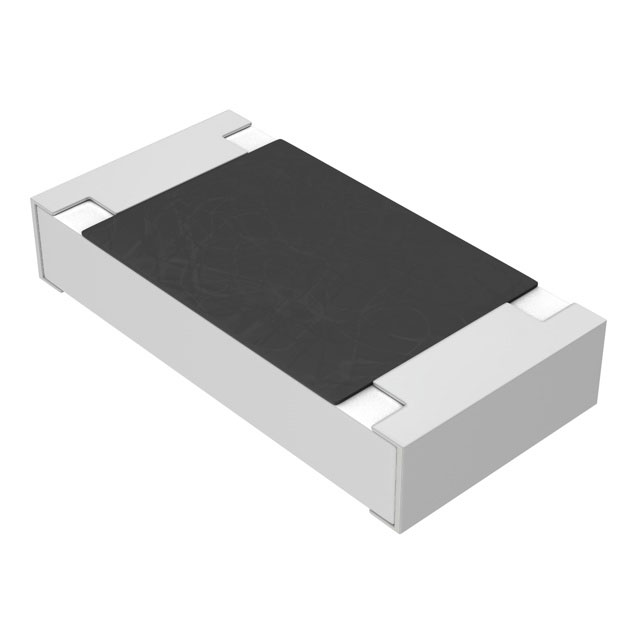

THICK FILM RESISTORS - SMD 1206 33K 5% LEAD FREE

...

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations [custom]	Composition	Supplier Device Package	Temperature Coefficient	Package / Case	Features	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Supplier Device Package	Package / Case
Kamaya Inc. RPC32333JTP	0.063 "	1.6 mm	0.122 "	3.1 mm	2	Thick Film	1206	100 ppm/°C	1206 (3216 Metric)	Automotive AEC-Q200 Pulse Withstanding	33000 Ohms	0.026 in	0.65 mm	0.3333333333333333 W	0.333 W	155 C	-55 C	5 %
Kamaya Inc. RPC20241JTP	0.049 "	1.25 mm	0.079 in	2 mm	2	Thick Film	0805	100 ppm/°C	0805	Automotive AEC-Q200 Pulse Withstanding	240 Ohms	0.026 in	0.65 mm	0.25 W	0.25 W	155 C	-55 C	5 %
Kamaya Inc. RPC50R75JTE	0.098 in	2.5 mm	0.197 in	5 mm	2	Thick Film		200 ppm/°C	2010 (5025 Metric)	Automotive AEC-Q200 Pulse Withstanding	0.75 Ohms				0.75 W	155 C	-55 C	5 %	0.7 mm	0.028 "	3/4W	2010
Kamaya Inc. RPC63561JTE	0.126 in	3.2 mm	0.248 in	6.3 mm	2	Thick Film		100 ppm/°C	2512 (6432 Metric)	Automotive AEC-Q200 Pulse Withstanding	560 Ohms				1 W	155 C	-55 C	5 %	0.7 mm	0.028 "		2512
Kamaya Inc. RPC20301JTP	0.049 "	1.25 mm	0.079 in	2 mm	2	Thick Film	0805	100 ppm/°C	0805	Automotive AEC-Q200 Pulse Withstanding	300 Ohms	0.026 in	0.65 mm	0.25 W	0.25 W	155 C	-55 C	5 %
Kamaya Inc. RPC20684JTP	0.049 "	1.25 mm	0.079 in	2 mm	2	Thick Film	0805	100 ppm/°C	0805	Automotive AEC-Q200 Pulse Withstanding	680 kOhms	0.026 in	0.65 mm	0.25 W	0.25 W	155 C	-55 C	5 %
Kamaya Inc. RPC35200JTE	0.098 in	2.5 mm	0.122 "	3.1 mm	2	Thick Film	1210	100 ppm/°C	1210	Automotive AEC-Q200 Pulse Withstanding	20 Ohms			0.5 W	0.5 W	155 C	-55 C	5 %	0.7 mm	0.028 "			3225 Metric
Kamaya Inc. RPC32821JTP	0.063 "	1.6 mm	0.122 "	3.1 mm	2	Thick Film	1206	100 ppm/°C	1206 (3216 Metric)	Automotive AEC-Q200 Pulse Withstanding	820 Ohms	0.026 in	0.65 mm	0.3333333333333333 W	0.333 W	155 C	-55 C	5 %
Kamaya Inc. RPC353R3JTE	0.098 in	2.5 mm	0.122 "	3.1 mm	2	Thick Film	1210	100 ppm/°C	1210	Automotive AEC-Q200 Pulse Withstanding	3.3 Ohms			0.5 W	0.5 W	155 C	-55 C	5 %	0.7 mm	0.028 "			3225 Metric
Kamaya Inc. RPC35125JTE	0.098 in	2.5 mm	0.122 "	3.1 mm	2	Thick Film	1210	200 ppm/°C	1210	Automotive AEC-Q200 Pulse Withstanding	1.2 MOhms			0.5 W	0.5 W	155 C	-55 C	5 %	0.7 mm	0.028 "			3225 Metric
