AR Series

Catalog

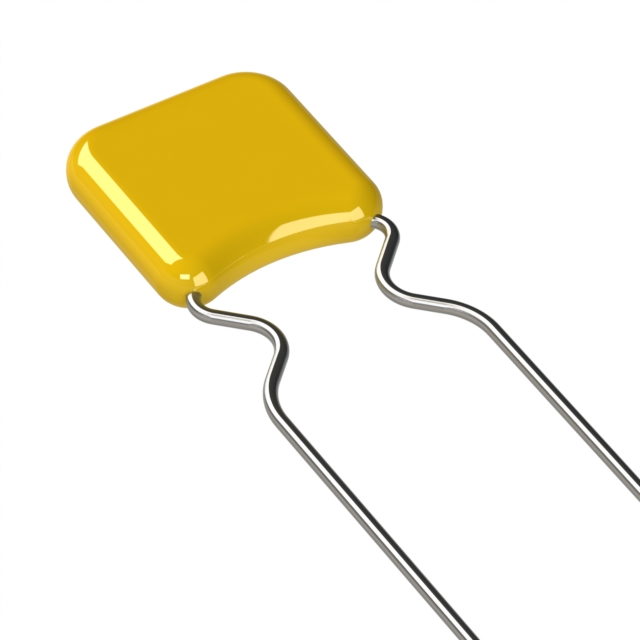

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 50 VDC .022UF X7R 10 % 0.2 IN AEC-Q200

Part	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Ratings	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max]
KYOCERA AVX AR215C223K4R	Automotive	Through Hole	3.18 mm	0.2 in	5.08 mm	0.125 "	50 VDC	AEC-Q200	Radial	-55 C	125 °C	Formed Leads - Kinked	X7R	5.08 mm	0.2 in	10 %	0.2 in	5.08 mm	0.022 µF
KYOCERA AVX AR155C104M4RTR1	Automotive	Through Hole	2.54 mm	0.15 "	3.81 mm	0.1 in	50 VDC	AEC-Q200	Radial	-55 C	125 °C	Straight	X7R	3.81 mm	0.15 in	20 %	0.1 in	2.54 mm	100000 pF
KYOCERA AVX AR211C104K4R3308	Automotive	Through Hole	3.18 mm	0.2 in	5.08 mm	0.125 "	100 V	AEC-Q200	Radial	-55 C	125 °C	Formed Leads - Kinked	X7R	5.08 mm	0.2 in	10 %	0.2 in	5.08 mm	100000 pF
KYOCERA AVX AR215F472K4R-SCC	Automotive	Through Hole	3.18 mm	0.2 in	5.08 mm	0.125 "	50 VDC	AEC-Q200	Radial	-55 C	150 °C	Formed Leads - Kinked	X8R	5.08 mm	0.2 in	10 %	0.2 in	5.08 mm	0.0047 µF
KYOCERA AVX SR125E103MAR	General Purpose	Through Hole	2.54 mm	0.15 "	3.81 mm	0.1 in	50 VDC		Radial	10 °C	85 °C	Formed Leads	Z5U			20 %	0.2 in	5.08 mm	10000 pF	5.84 mm	0.23 in
KYOCERA AVX AR215F102K4R	Automotive	Through Hole	3.18 mm	0.2 in	5.08 mm	0.125 "	50 VDC	AEC-Q200	Radial	-55 C	150 °C	Formed Leads - Kinked	X8R	5.08 mm	0.2 in	10 %	0.2 in	5.08 mm	0.001 µF
KYOCERA AVX AR125C103K4R	Automotive	Through Hole	2.54 mm	0.15 "	3.81 mm	0.1 in	50 VDC	AEC-Q200	Radial	-55 C	150 °C	Formed Leads	X7R			10 %	0.2 in	5.08 mm	10000 pF	5.84 mm	0.23 in
KYOCERA AVX AR215F103J4R	Automotive	Through Hole	3.18 mm	0.2 in	5.08 mm	0.125 "	50 VDC	AEC-Q200	Radial	-55 C	150 °C	Straight	X8R	5.86 mm	0.231 "	5 %	0.2 in	5.08 mm	10000 pF
KYOCERA AVX AR305C334K4R	Automotive	Through Hole	3.81 mm	0.3 "	7.62 mm	0.15 "	50 VDC	AEC-Q200	Radial	-55 C	125 °C	Straight	X7R			10 %	0.2 in	5.08 mm	0.33 µF	7.62 mm	0.3 in
KYOCERA AVX AR125C473K4RTR2	Automotive	Through Hole	2.54 mm	0.15 "	3.81 mm	0.1 in	50 VDC	AEC-Q200	Radial	-55 C	125 °C	Formed Leads	X7R			10 %	0.2 in	5.08 mm		5.84 mm	0.23 in
