94HBB10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 50V

Part	Body Material	Mechanical Life	Length	Length	Voltage Rating	Mounting Type	Height Above Board [z]	Height Above Board [z]	Actuator Type	Current Rating (Amps)	Number of Positions	Pitch	Pitch	Washable	Actuator Level	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Finish	Circuit

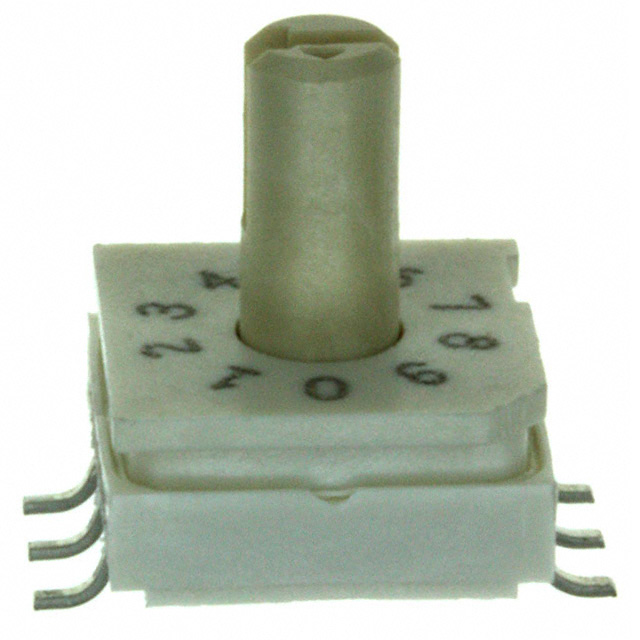

Grayhill Inc. 94HBB10WT	Plastic	10000 Steps	0.39 "	9.91 mm	50 V	Surface Mount	5.72 mm	0.225 in	Rotary with Shaft	100 mA	10	2.54 mm	0.1 "		Raised	Copper Alloy	Sealed	85 °C	-40 C	Gull Wing	Gold	BCD
