lqg Series

Catalog

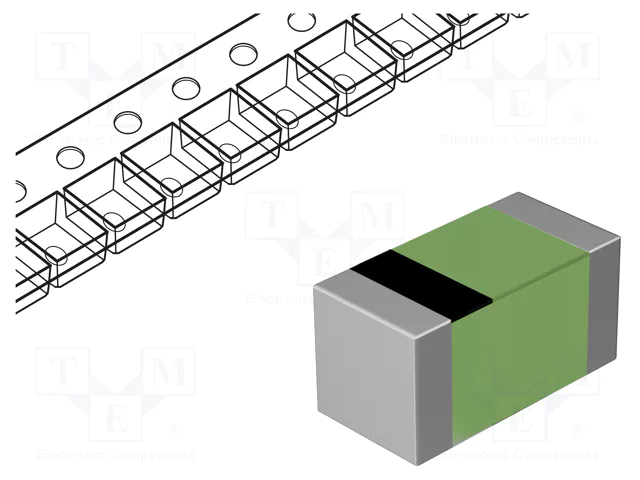

INDUCTOR: AIR COIL; SMD; 0402; 150NH; 150MA; 2.99Ω; ±2%; LQG; 180MM

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Supplier Device Package	Type	Ratings	Inductance	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material - Core	Frequency - Self Resonant
Murata Electronics LQG15HHR15G02D	Surface Mount	-55 C	125 °C	100 MHz	2.99 Ohm	0402 (1005 Metric)	Multilayer	AEC-Q200	150 nH	2 %	8	100 MHz	Unshielded	0.55 mm	0.022 in	0402 (1005 Metric)	150 mA	0.02 in	0.5 mm	0.039 "	1 mm	Air	550 MHz
Murata Electronics LQG15HHR15J02D	Surface Mount	-55 C	125 °C	100 MHz	2.99 Ohm	0402 (1005 Metric)	Multilayer	AEC-Q200	150 nH	5 %	8	100 MHz	Unshielded	0.55 mm	0.022 in	0402 (1005 Metric)	140 mA	0.02 in	0.5 mm	0.039 "	1 mm	Air	550 MHz
