LHA-07 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN WIRE TO BOARD HDR 7 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BAG
| Part | Connector Type | Voltage Rating | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Number of Positions | Style | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Insulation Material | Contact Shape | Contact Type | Number of Rows | Contact Finish - Post | Insulation Height | Insulation Height | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Fastening Type | Current Rating (Amps) | Mounting Type | Shrouding | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Header | 250 VAC | Brass | Solder | 85 °C | -25 °C | 0.134 " | 3.4 mm | 7 | Board to Cable/Wire | All | 14.2 mm | 0.559 " | Nylon Polyamide (PA) | Square | Male Pin | 1 | Tin | 0.134 in | 3.4 mm | Ivory | 0.1 " | 2.54 mm | 0.291 in | 7.4 mm | Friction Lock | 3 A | Through Hole | Shrouded - 1 Wall | UL94 V-2 | ||

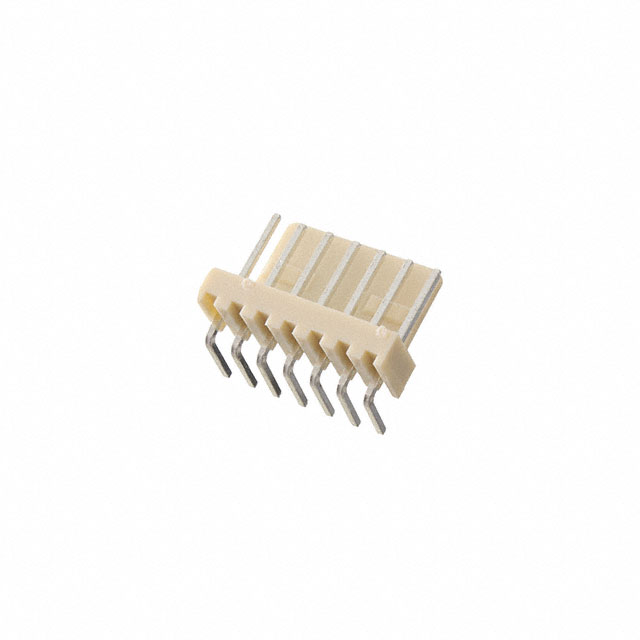

 Adam Tech | Header | 250 VAC | Brass | Solder | 85 °C | -25 °C | 0.134 " | 3.4 mm | 7 | Board to Cable/Wire | All | Nylon 6/6 Polyamide (PA66) | Square | Male Pin | 1 | Tin | White | 0.1 " | 2.54 mm | 0.293 in | 7.45 mm | Friction Lock | 3 A | Right Angle Through Hole | Shrouded - 1 Wall | UL94 V-2 | 0.228 " | 5.8 mm |
