0861-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

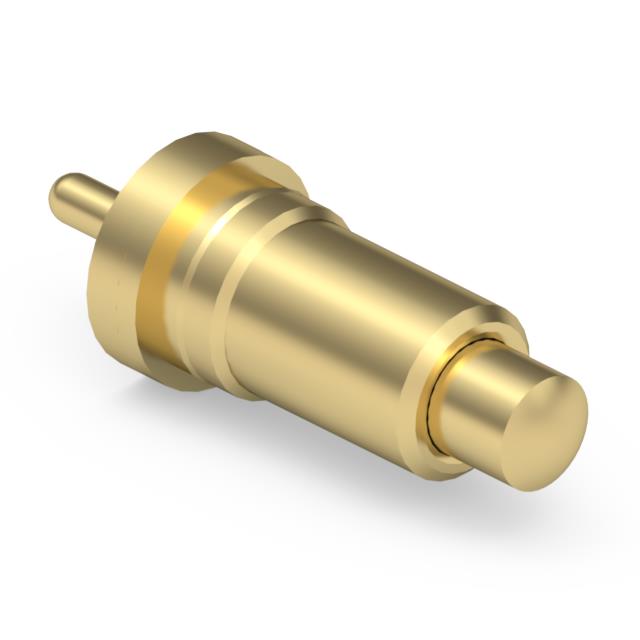

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Contact Material | Contact Type | Operating Force - Initial | Minimum Working Height | Minimum Working Height | Current Rating (Amps) | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension [diameter] | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Recommended Working Height | Recommended Working Height [custom] | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.34 mm | 0.092 in | Through Hole | Brass Alloy | Sleeve & Plunger (Pogo Pins) | 25 gf | 8.13 mm | 0.32 in | 9.6 A | 100 gf | 4.75 mm | 0.187 in | Gold | 10.16 mm | 0.4 in | 9.14 mm | 0.36 in | 1000000 | 20 µin | 0.51 µm |
